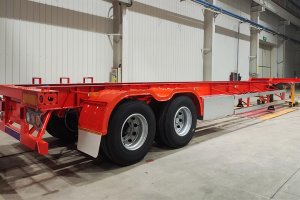

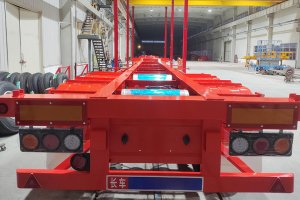

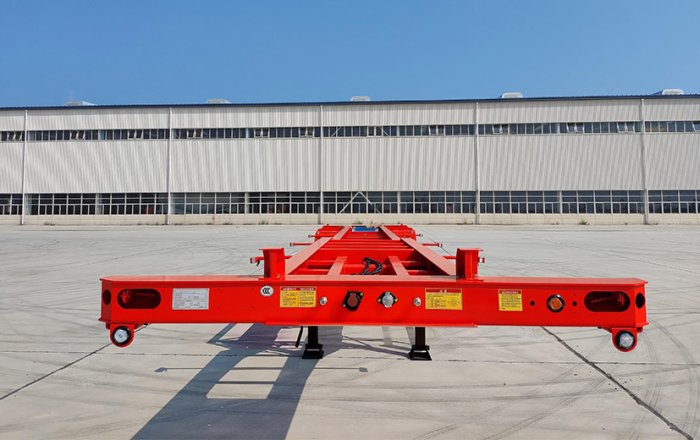

45ft Gooseneck Skeleton Semi Trailer for Container Transportation

The 45ft gooseneck skeleton semi trailer is designed for container transportation and logistics operations that require a dedicated container chassis. With an open skeleton frame and container locking points, this type of semi trailer provides a practical platform for moving shipping containers between ports, container yards, warehouses, distribution centers, and inland destinations. Its structure is focused on container support and secure transportation rather than carrying general cargo on a continuous deck.

Qingdao Jinjun Vehicle Co., Ltd. offers skeleton container semi trailers in different axle configurations and customized specifications. The product range includes 2 axle, 3 axle, and 4 axle options for 20FT, 40FT, and 45FT container transportation. The supplied specification lists a maximum payload of 80T, a Q345B main beam, and a range of axle, suspension, tire, and accessory options. Final configuration should be confirmed according to the container dimensions, local road regulations, tractor compatibility, and the customer's operating requirements.

For transport companies, a suitable container chassis can contribute to efficient fleet operation. Important considerations include trailer tare weight, container compatibility, chassis structure, loading and unloading procedures, running gear, maintenance, and shipping arrangements. A well-matched gooseneck skeleton semi trailer helps create a transport solution that is aligned with the customer's actual working conditions.

What Is a 45ft Gooseneck Skeleton Semi Trailer?

A skeleton semi trailer, also known as a skeleton container trailer or container chassis trailer, is a road trailer primarily designed to carry shipping containers. It uses an open frame made up of longitudinal beams, crossmembers, running gear, and container locking points. Instead of a full cargo platform, the skeleton structure supports the container at designated positions and leaves the surrounding frame open for container handling operations.

The gooseneck design refers to the raised or shaped front section of the chassis that connects with the tractor through the king pin. The overall layout is intended to form a compatible tractor-trailer combination for container transportation. Because container dimensions, tractor specifications, and transport regulations vary by market, the final gooseneck configuration should be confirmed against the intended application.

A 45ft container chassis is particularly relevant to logistics operators handling longer containers. Container length, locking positions, overall trailer dimensions, and permitted axle loads all need to be considered together. The trailer must be matched to the container type and the relevant operating conditions to ensure practical compatibility.

In container logistics, the container can remain loaded while being transferred between road, sea, and rail transportation, depending on the transport arrangement. A skeleton semi trailer therefore serves as an important link in the intermodal supply chain, helping move containers without repeatedly handling the cargo inside.

Key Advantages of a Gooseneck Skeleton Container Trailer

• Lightweight structure: A lightweight chassis can help increase the available cargo loading capacity and improve transportation efficiency, subject to the applicable gross vehicle weight and road regulations.

• High space utilization: The open skeleton structure can be adapted to different container sizes and specifications when equipped with suitable locking positions.

• Efficient loading and unloading: The container-focused chassis design can help shorten handling time and improve logistics efficiency at ports, container yards, and freight facilities.

These advantages support the core purpose of a skeleton container trailer: transporting containers efficiently with a structure designed for the job. For operators that regularly move containers, an appropriate chassis can help improve equipment utilization and streamline routine logistics processes. The actual performance depends on the complete vehicle configuration, handling equipment, route conditions, and operating procedures.

Lightweight Chassis for Improved Transport Efficiency

Trailer weight is an important factor in commercial container transportation. A lower tare weight may provide additional payload capacity within the permitted gross vehicle weight. However, the legal payload of a complete tractor-trailer combination depends on the tractor, trailer, axle configuration, container, cargo, and local regulations. Operators should verify the permitted weight before using the trailer on public roads.

The skeleton structure avoids the need for a continuous cargo deck and focuses on the components required to support and secure the container. This design can help optimize the chassis for container transport. The main beam, crossmembers, container locks, suspension mounting points, and running gear must still be designed as a complete structural system.

For fleet operators, payload utilization should be considered together with route planning and container handling. A trailer configured for the correct container type and transport conditions can help reduce mismatches between the equipment and the task. When evaluating a lightweight chassis, customers should also review its structural specification and ensure that the final configuration meets the intended operating requirements.

The stated main beam material for this product is Q345B. The supplied dimensions and thicknesses are included in the specification table below. These values should be reviewed together with the trailer layout and the requirements of the selected container.

Open Skeleton Design and Container Compatibility

The open frame is a defining feature of the skeleton semi trailer. It supports the container through a chassis structure and designated twist lock positions rather than a continuous platform. This arrangement is suitable for container transportation and allows handling equipment to work with the container during loading and unloading.

Container compatibility should be confirmed before production. A trailer intended for a 45ft container must have a suitable layout for the container's dimensions and locking positions. The supplied product range also lists 20FT and 40FT container configurations. The exact combination of container size, axle arrangement, and chassis layout should be confirmed with the manufacturer.

Customers should provide information about the container type, expected cargo weight, operating route, and tractor specifications. This information helps determine whether the selected chassis configuration is suitable for the intended transport operation. Where local regulations define specific limits for overall dimensions or axle loads, those requirements should be included in the configuration review.

For logistics companies operating multiple container sizes, it is important to confirm which containers the trailer will carry regularly and whether the intended locking positions cover the required range. Clear specifications before ordering can help reduce the risk of incompatibility during actual operation.

Loading and Unloading Efficiency

Container transportation relies on the coordination of tractors, trailers, container handling equipment, and terminal procedures. A skeleton semi trailer is designed to work within this system. Its open chassis and container locking points provide a dedicated support arrangement for the container, making it suitable for operations at ports, container depots, logistics centers, and industrial facilities.

When the container can be handled as a single unit, cargo does not need to be unloaded from the container at every transport stage. Depending on the logistics plan, the same container can be transferred between road vehicles, ships, and rail transport. This can reduce repeated cargo handling and support a more organized transportation process.

The time required for loading and unloading depends on the equipment available at the terminal, the site layout, container condition, and operating procedures. A suitable trailer helps support the handling process, but overall logistics efficiency also depends on coordination between the transport provider and the terminal operator.

Applications of a 45ft Gooseneck Skeleton Semi Trailer

A 45ft gooseneck skeleton semi trailer can be used in container transportation operations where a compatible chassis is required. Common applications include port-to-warehouse delivery, container yard transfers, inland container transportation, freight forwarding, and intermodal logistics. The open frame structure is suitable for businesses that regularly move shipping containers as part of their transport activities.

In port logistics, container trailers are used to transfer containers between terminals, storage yards, and nearby distribution locations. In inland transportation, they can deliver containers to factories, warehouses, construction facilities, and customer sites. In intermodal operations, the container can be moved between different transport modes without unloading the cargo inside the container itself.

Transport requirements differ across markets. Road conditions, axle load limits, container types, tractor specifications, and local regulations can affect the choice of chassis. Customers should confirm their operating environment and intended container range before selecting the final configuration.

For fleet procurement, the suitability of a trailer should be considered in relation to the whole transportation system. This includes the tractors already in operation, the types of containers handled, the transport distance, the loading facilities, and the expected maintenance arrangements.

Jinjun Gooseneck Skeleton Semi Trailer Specifications

The following table presents the supplied specifications for the skeleton container semi trailer. The original product data lists 2 axle, 3 axle, and 4 axle configurations for 20FT, 40FT, and 45FT container transportation. The size can be customized, and the final model can be designed according to the customer's requirements. Please confirm all configuration details before ordering.

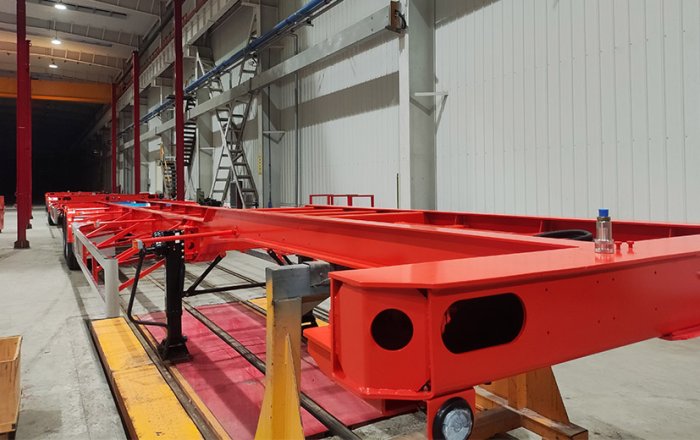

Main Beam and Chassis Structure

The main beam is one of the principal structural components of a skeleton semi trailer. It supports the chassis and helps distribute loads through the frame and running gear. The specified main beam material is Q345B. Its listed dimensions include a height of 500mm, an upper plate thickness of 14mm, a lower plate thickness of 16mm, and a middle plate thickness of 8mm.

These dimensions should be considered as part of the complete chassis design. Crossmembers, container locking positions, suspension mounting points, and other structural components work together to support the container during transportation. The final design should correspond to the selected container type and the customer's intended working conditions.

For customers requiring a particular trailer layout, the size and model can be customized. Providing container dimensions, tractor information, cargo requirements, and local operating conditions before production helps establish the required configuration.

Axle and Suspension Configurations

The supplied product specification lists 2 axle, 3 axle, and 4 axle configurations, with 13T or 16T axle options. FUWA, BPW, or other axle brands can be selected. The appropriate axle arrangement should be confirmed according to the required payload, applicable axle load limits, road conditions, and fleet operating requirements.

Suspension options include mechanical suspension and lifting air suspension in American or German configurations. Mechanical suspension is commonly used in commercial trailer applications. Lifting air suspension may be selected when it is suitable for the customer's operating conditions and vehicle requirements. The final suspension type should be confirmed as part of the complete trailer configuration.

The listed leaf spring specification is 90(w)mm*13/16(thickness)mm*10(layer). The landing gear is specified as 28t heavy duty, with JOST or other brands available. The king pin options are 2"(50mm)or3.5"(90mm), with JOST or other brands. These components must be compatible with the tractor and the intended operating arrangement.

Container Locking System and Accessories

Twist locks are used to secure the container to the trailer chassis. The supplied specification lists 12 units. The locking positions should correspond to the selected container dimensions and trailer layout. Correct container securing is important for safe transport, and the arrangement should be confirmed before production.

The listed accessory package includes one tooling box with a set of standard trailer tools and one spare tire carrier. These components support basic operation and maintenance. Customers should confirm any additional tools or equipment required for their fleet before finalizing the order.

The tire options listed for this trailer are 12.00R22.5, 315 80R22.5, and 11.00R20, with the tire brand optional. The specified rim size is 9.00-22.5. Tire selection should consider the road conditions, applicable regulations, and the customer's existing fleet requirements.

Customization for Different Transport Requirements

Container transportation requirements vary by country, route, and logistics operation. Jinjun accepts customization of LOGO, design, color, and other details. The supplied product information also states that the model can be designed according to the customer's requirements.

Customization can involve the trailer size, container compatibility, axle arrangement, suspension, tires, king pin, landing gear, painting, and accessory selection. Customers can provide their current fleet specifications or describe their intended transport conditions. This information helps define a configuration that is suitable for the application.

For fleet operators, consistency across equipment can simplify daily operation. Similar trailer configurations may support driver familiarization, spare parts planning, maintenance management, and dispatching. The final specification should balance the customer's transport requirements with the applicable local regulations and operating costs.

Shipping, Packaging and Delivery

The supplied shipping information states that the trailer can be transported by sea from Qingdao, Lianyungang, or Tianjin Port. The shipment may be carried by a ro-ro ship or a bulk cargo ship. Freight costs depend on the volume and the actual shipping arrangement.

Before shipment, customers should confirm the destination port, delivery terms, shipping schedule, and import documentation requirements. The shipping method may depend on the trailer dimensions, available vessel arrangements, and the overall logistics plan.

When requesting a quotation, providing the destination country and port, required trailer configuration, order quantity, and preferred shipping method helps the supplier prepare a relevant freight estimate. The final freight cost should be confirmed according to the actual shipping plan.

How to Select a Suitable Gooseneck Skeleton Trailer

Start by confirming the container size and type. A trailer intended for 45ft containers must be matched to the relevant container dimensions and locking positions. If the trailer will also be used for other container sizes, this requirement should be clarified before selecting the chassis layout.

Next, consider the tractor and local road regulations. The king pin, axle arrangement, permitted axle loads, overall dimensions, tires, and suspension should be compatible with the tractor and the route. The trailer should be evaluated as part of a complete tractor-trailer combination.

Operating conditions are also important. Port transfers, long-distance inland transportation, and frequent container yard movements may involve different road conditions and handling requirements. Sharing the transport route, expected cargo weight, container types, and fleet requirements with the manufacturer can help confirm the final configuration.

Before placing an order, review the technical specification, customization details, shipping method, and delivery arrangements. Clear confirmation of these points helps align the trailer with the customer's transportation needs.

Frequently Asked Questions

· What is a 45ft gooseneck skeleton semi trailer used for?

It is designed for container transportation, including port logistics, container yard transfers, inland container delivery, freight forwarding, and intermodal transport operations. The final configuration should match the container and operating requirements.

· Which container sizes are listed in the product specification?

The supplied specification lists 20FT, 40FT, and 45FT skeleton container semi trailer configurations. The exact trailer layout should be confirmed according to the required container size.

· What is the maximum payload listed?

The supplied maximum payload is 80T. The actual permitted loading depends on the complete vehicle combination and the applicable transport regulations.

· Can the trailer be customized?

Yes. The supplied information states that LOGO, design, color, and size can be customized, and that the model can be designed according to the customer's requirements.

· Which axle and suspension options are available?

The listed options include 2 axle, 3 axle, and 4 axle configurations, 13T or 16T axles, FUWA/BPW or other brands, and mechanical suspension or lifting air suspension in American or German configurations.

· Which ports can be used for shipping?

The supplied shipping information lists Qingdao, Lianyungang, and Tianjin Port. Transportation may be arranged by ro-ro ship or bulk cargo ship, with freight costs depending on the volume and shipping arrangement.

Request a Quote

If you are looking for a 45ft gooseneck skeleton semi trailer for container transportation, Qingdao Jinjun Vehicle Co., Ltd. can help review the required configuration. Please provide the container dimensions, expected cargo weight, axle preference, suspension requirements, tractor information, destination country, and order quantity.

With these details, the trailer specification and shipping arrangement can be reviewed according to your transport requirements. Contact Jinjun to discuss a customized skeleton container semi trailer solution for your logistics operation.
