Skeleton Semi Trailer is a kind of semi-trailer with standardizes size (customization) and steel skeleton structure, mainly used for transporting container.

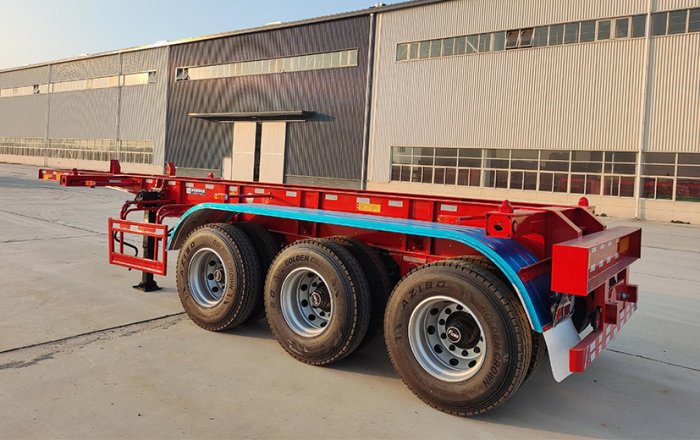

A skeleton semi trailer is a specialized transport vehicle designed for carrying shipping containers. With an open chassis structure and container locking points, it provides a practical transportation solution for logistics companies, freight forwarders, container transport operators and other businesses involved in container transportation. Jinjun supplies skeleton container semi trailers in 2 axle, 3 axle and 4 axle configurations, suitable for 20FT, 40FT and 45FT container transportation requirements.
The Jinjun skeleton semi trailer is designed to combine a practical chassis structure with flexible container transportation capability. Its open skeleton design helps reduce unnecessary structural weight while providing the space and support required for container transportation. According to the supplied product specifications, the maximum payload is 80T, and the overall size is 12400*2480*1540mm. The size and other configuration details can be customized according to customer requirements.
Different countries and transportation businesses have different requirements for container trailers. Road conditions, container sizes, loading arrangements, axle configurations and local vehicle regulations may all affect the final product selection. For this reason, Jinjun accepts customization of LOGO, design and color, and can design a trailer model according to the customer's requirements. Whether you need a 20FT, 40FT or 45FT skeleton semi trailer, our team can discuss the intended application and help determine a suitable configuration.

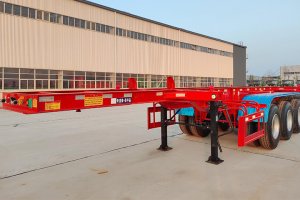

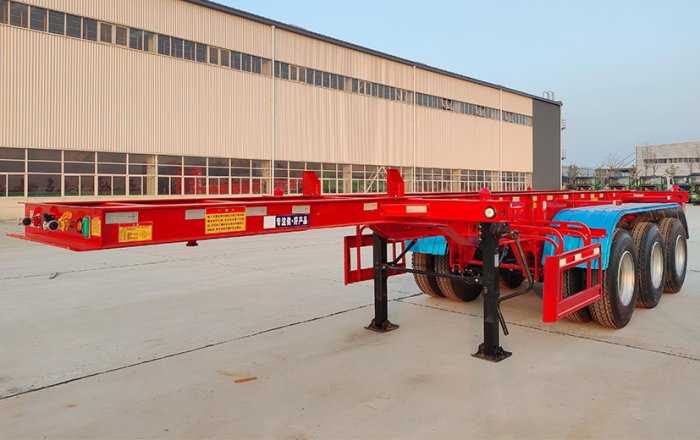

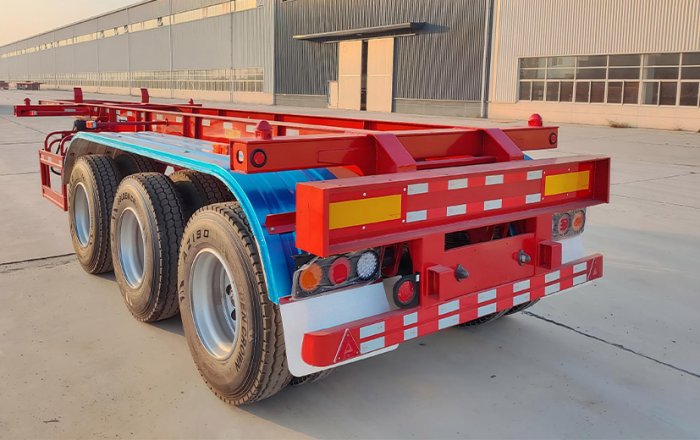

A skeleton semi trailer, also known as a skeleton container semi trailer or container skeleton trailer, is a semi trailer with an open chassis structure developed mainly for transporting shipping containers. Unlike a flatbed semi trailer with a continuous loading platform, a skeleton trailer uses a framework structure to support and secure containers at designated positions.
The trailer is equipped with container twist locks that connect the container to the chassis during transportation. These locking points help keep the container in its intended position when the trailer is operating. The number and arrangement of twist locks should correspond to the intended container sizes and the trailer's approved configuration.
Skeleton semi trailers are commonly used in ports, container yards, logistics centers, industrial areas and long-distance container transportation operations. They can be used to move containers between ports, warehouses, distribution centers and other destinations. Their open structure makes them a suitable choice for businesses whose main transportation task is moving standard shipping containers rather than general cargo loaded directly onto a deck.
Jinjun offers 2 axle, 3 axle and 4 axle skeleton semi trailer options for 20FT, 40FT and 45FT container transportation. The actual configuration should be selected according to the container dimensions, cargo weight, transportation route and local road regulations.
A skeleton container semi trailer offers several practical advantages for container transportation. Its structure is designed around the requirements of container loading, securing and road transportation. The following features are among the main reasons why logistics operators consider skeleton trailers for container transport fleets.
The open skeleton structure avoids the need for a full loading platform. This structural approach can help reduce the trailer's own weight compared with certain trailer designs that use a complete deck structure. A lighter trailer may allow operators to allocate a greater proportion of the permitted vehicle weight to cargo, subject to applicable vehicle regulations, axle load limits and the actual trailer configuration.
For transportation companies, trailer tare weight is an important factor when evaluating operating efficiency. The relationship between tare weight, payload, tractor specifications and local legal limits should be considered together. Jinjun can discuss the customer's required configuration and provide product information for evaluation before an order is confirmed.
The skeleton structure is designed to accommodate different container sizes and specifications. It can be configured for 20FT, 40FT and 45FT container transportation, allowing operators to select a suitable trailer for their container handling requirements. This flexibility can help businesses organize container transportation more efficiently across different routes and logistics tasks.
Container transportation usually involves lifting equipment such as container cranes, reach stackers or other suitable handling machines. The open chassis structure provides access to the container from the relevant lifting positions. When the trailer, container and handling equipment are properly matched, loading and unloading operations can be arranged efficiently, helping reduce unnecessary handling time and improve logistics workflow.
Different transportation operations may require different axle arrangements and running systems. Jinjun provides 2 axle, 3 axle and 4 axle options, with axle and suspension configurations available for discussion according to the customer's needs. This makes it possible to evaluate a trailer solution based on the intended cargo, operating environment and local requirements.
For container transportation operators, the trailer structure has a direct relationship with vehicle weight and operating arrangements. A skeleton semi trailer uses a framework chassis rather than a full-width cargo deck. This open structure is intended to provide the necessary support for containers while avoiding structural components that are not required for the intended container transportation task.
The product's stated maximum payload is 80T. Actual legal payload and operating limits must be assessed according to the complete vehicle combination, tractor specifications, axle loads, road conditions and the regulations in the destination market. The stated maximum payload should not be treated as a guarantee that every tractor-trailer combination can legally carry this weight on every road.
When selecting a skeleton container semi trailer, buyers should consider more than the maximum payload shown in a product description. The tare weight, container weight, cargo weight, axle arrangement, kingpin load and local road restrictions all affect the practical transportation plan. A suitable configuration should be selected after these factors have been reviewed.
Jinjun can discuss the intended operating conditions with customers and provide a customized trailer model according to their requirements. This helps buyers evaluate the balance between trailer structure, container compatibility and transportation needs before placing an order.
One of the key functions of a skeleton semi trailer is to carry containers of different sizes. The product is offered for 20FT, 40FT and 45FT container transportation. This range gives logistics operators flexibility when planning container movements and selecting equipment for different transportation tasks.
Container dimensions and locking positions must be checked before the trailer configuration is confirmed. The container type, length, corner casting positions and loading arrangement should match the trailer's twist lock layout. Buyers should also consider whether the trailer will mainly transport one container size or needs to support different container sizes during daily operation.
For businesses that handle several container specifications, selecting a suitable skeleton trailer can help simplify fleet planning. Instead of choosing equipment only according to a general product name, operators should evaluate the actual container combinations and routes that the trailer will serve.
Jinjun accepts customization of design and can discuss the required model according to the customer's container transportation needs. Customers are encouraged to provide the container size, expected cargo weight, transportation routes and any special operating requirements when requesting a quotation.
Loading and unloading efficiency is an important consideration in container logistics. Delays at ports, warehouses and container yards can affect vehicle scheduling and the overall transportation process. A skeleton semi trailer is designed around container handling procedures, with an open chassis structure that allows containers to be positioned and secured using suitable lifting equipment.
During loading, the container is placed onto the trailer in accordance with the designated position and the locking points are engaged. Before transportation, operators should check that the container is properly positioned and that all required twist locks are correctly secured. The same attention is required during unloading to ensure that the container can be released and lifted safely.
The actual loading and unloading time depends on the handling equipment, operator procedures, container condition, terminal layout and site management. The skeleton trailer supports an organized container handling process, but it does not independently determine the speed of the entire operation.
For customers planning a new container transportation fleet, it is useful to consider the trailer together with the lifting equipment and the working procedures at the loading and unloading locations. This helps ensure that the selected trailer can work smoothly within the customer's logistics system.
Skeleton semi trailers are used in transportation operations where shipping containers need to be moved between different locations. Their open chassis design and container locking system make them suitable for a range of container logistics activities.
Ports and container terminals handle large volumes of containers every day. Skeleton container semi trailers can be used to transport containers between terminal areas, storage yards, nearby warehouses and other designated locations. The suitable axle configuration and trailer dimensions should be confirmed according to the port's operating conditions and local transport regulations.
Logistics companies may use skeleton trailers to move containers between container yards, distribution centers and warehouses. The 20FT, 40FT and 45FT options can be considered according to the container sizes handled by the business. Buyers should confirm the container specifications and the required locking positions before ordering.
For logistics operators transporting containers over longer distances, the trailer should be selected according to the route, tractor combination, cargo weight and local vehicle restrictions. A suitable axle and suspension configuration can be discussed with the manufacturer based on the intended operating environment.
Manufacturers, importers, exporters and distribution companies may use container trailers to move raw materials, finished goods and other containerized cargo. A skeleton semi trailer can form part of a fleet serving these transportation tasks, provided that the container and cargo are compatible with the trailer's rated configuration.
The following table presents the specifications provided for the Jinjun skeleton semi trailer. All numerical values and technical descriptions are retained from the supplied product information. Configurations may be customized according to customer requirements. Please confirm the final technical specification with Jinjun before placing an order.
| Item | Specification |
|---|---|
| Product | 2/3/4 axle 20FT/40FT/45FT skeleton container semi trailer |
| Customization | We accept customization of any LOGO/DESIGN/COLOR etc |
| Max Payload | 80T |
| Size | 12400*2480*1540mm (can be customized) |
| Main Beam | Q345B |
| Main Beam Dimensions | Height 500mm, upper plate is 14mm, down plate is 16mm, middle plate is 8mm. |
| Axle | 2/3/4 axle*13/16T, FUWA/BPW brand or others |
| Suspension | Mechanical Suspension / Air Suspension with lifting (American or German) |
| Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) |
| Landing Gear | 28t Heavy Duty Landing Gear, JOST brand or others |
| King Pin | 2"(50mm) or 3.5"(90mm) JOST brand or others |
| Tire | 12.00R22.5/315 80R22.5/11.00R20 (Brand optional) |
| Rim | 9.00-22.5 |
| Twist Lock | 12 units |
| Accessory | One tooling box with a set of standard trailer tool. |
| Spare Tire Carrier | One piece |
| Painting | Any color will be available with powder coating process |
| Packaging and Delivery | By sea transfer from Qingdao or Lianyungang or Tianjin Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume. |
| Remarks | We can design model according to customer's requirement |
The specifications above provide a reference for product selection. Some configurations, such as axle brand, suspension type, tire brand, king pin and color, can be discussed according to the customer's requirements. The final configuration should be confirmed in the technical agreement or order documentation.

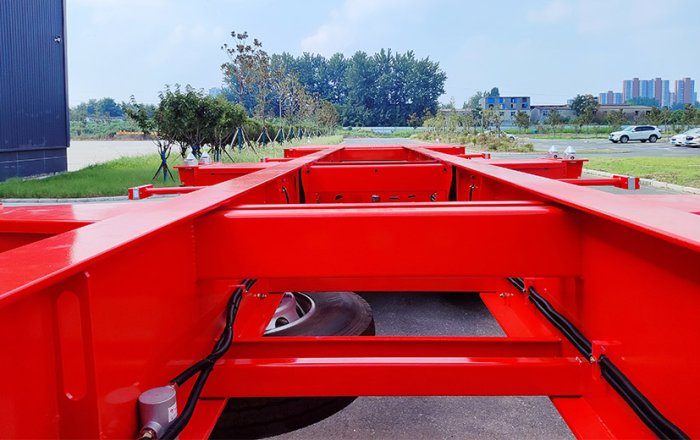

The main beam is an important structural component of a skeleton semi trailer. According to the supplied specifications, the main beam material is Q345B, with a height of 500mm. The upper plate is 14mm, the down plate is 16mm and the middle plate is 8mm.
These specifications should be considered together when evaluating the trailer's structure and intended application. Buyers should confirm that the selected trailer configuration is suitable for the planned container weight, cargo weight, road conditions and applicable regulations. The complete chassis design, welding quality, component installation and manufacturing process are also relevant to the finished trailer.

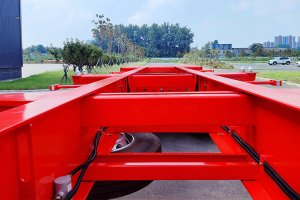

The skeleton chassis is designed to support containers at their designated positions rather than provide a continuous cargo floor. Its structure, dimensions and locking arrangement should therefore be considered as a complete system. Customers with special container combinations or operating requirements should provide details to Jinjun before production.

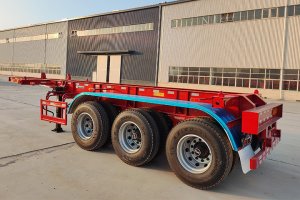

The supplied product specifications include 2 axle, 3 axle and 4 axle configurations, with 13/16T axle options. FUWA, BPW or other axle brands can be selected. The appropriate axle arrangement should be evaluated according to the intended payload, container weight, tractor specifications, road conditions and local axle load regulations.
For suspension, the listed options are mechanical suspension and air suspension with lifting, with American or German types. The choice should be based on the customer's operating environment, maintenance arrangements and transportation requirements. Customers should also consider the availability of replacement parts and technical support in the destination market.
The leaf spring specification is 90(w)mm*13/16(thickness)mm*10(layer). The listed tire options are 12.00R22.5/315 80R22.5/11.00R20, with the tire brand optional. The rim specification is 9.00-22.5.

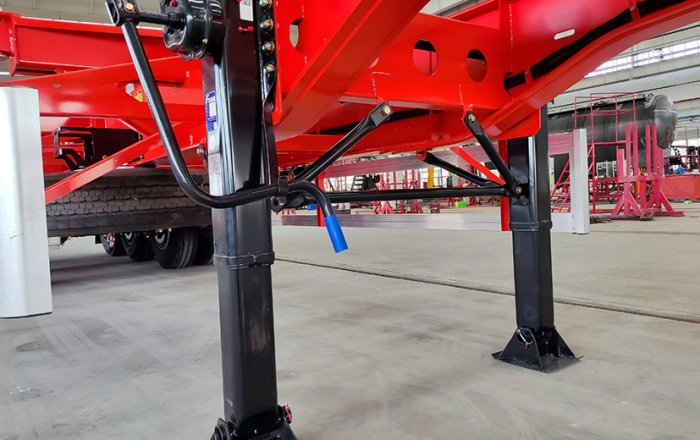

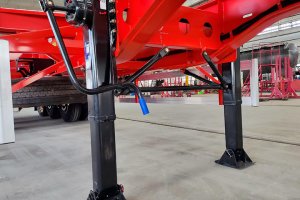

Landing gear is specified as 28t Heavy Duty Landing Gear, JOST brand or others. The king pin options are 2"(50mm) or 3.5"(90mm), JOST brand or others. These components should be confirmed according to the tractor connection, vehicle combination and customer's requirements.

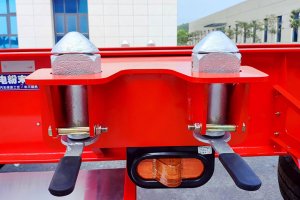

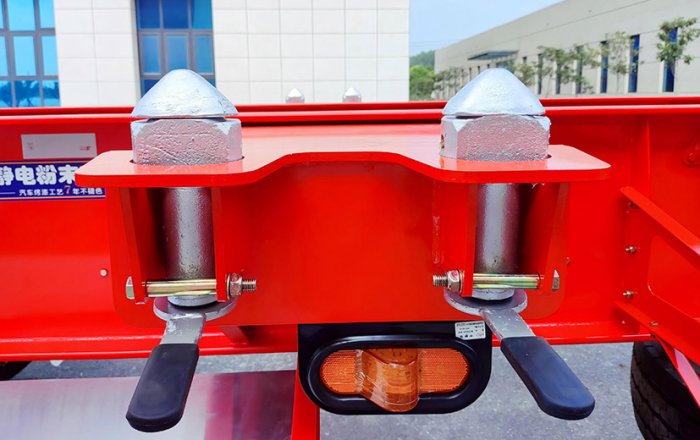

Twist locks are essential components of a skeleton container semi trailer because they connect the container to the trailer chassis. The supplied specification lists 12 units. Their positions and compatibility should be checked against the container sizes and loading arrangements required by the customer.
Before a container is transported, operators should check the condition and engagement of the twist locks. The container should be correctly positioned, and the locking points should be secured according to the operating procedure. Regular inspection and maintenance can help identify wear, damage or other issues that may affect safe operation.
The listed accessories include one tooling box with a set of standard trailer tools and one spare tire carrier. These accessories support routine operation and maintenance. The painting specification states that any color will be available with a powder coating process, allowing customers to discuss a preferred color for their fleet or company identity.
Jinjun also accepts customization of LOGO and design. Customers who need a particular company logo, color arrangement or trailer appearance can provide their requirements for discussion before production.
Container transportation requirements vary according to the destination market, container type, cargo weight and operating environment. A trailer configuration suitable for one fleet may not necessarily be suitable for another. Jinjun therefore accepts customization and can design a model according to the customer's requirements.
Customers should specify whether the trailer will mainly transport 20FT, 40FT or 45FT containers. If several container sizes are required, provide the expected combinations and operating frequency. This information helps determine the appropriate trailer layout and twist lock arrangement.
The axle configuration and suspension type should be discussed according to the intended payload, road conditions and local regulations. Customers can indicate whether they prefer 2 axle, 3 axle or 4 axle options, as well as mechanical suspension or air suspension with lifting.
Jinjun accepts customization of LOGO, design and color. Customers can provide brand requirements for selected components and share their preferred trailer appearance. The final details should be confirmed before production.
Before manufacturing begins, buyers should review the dimensions, payload, main beam specifications, axle configuration, suspension, tires, rims, twist locks and other agreed items. Clear confirmation helps ensure that the delivered trailer corresponds to the approved order requirements.
For export orders, transportation arrangements are an important part of the purchasing process. According to the supplied product information, the skeleton semi trailer can be shipped by sea from Qingdao, Lianyungang or Tianjin Port. The listed shipping methods include ro-ro ship and bulk cargo ship.
The freight cost depends on the volume. The final shipping arrangement should be evaluated according to the destination port, shipping schedule, trailer dimensions, loading plan and carrier requirements. Customers should confirm the preferred destination port and delivery arrangements when requesting a quotation.
For international purchases, buyers should also consider the documentation and import requirements of the destination country. Shipping arrangements, export documents and local customs procedures should be discussed before the order is finalized. Jinjun can communicate with customers about the product and delivery details during the order process.
Selecting a skeleton semi trailer requires an evaluation of the container sizes, cargo weight, transportation route and local operating conditions. The following points can help buyers prepare the necessary information before requesting a quotation.
Identify whether the main requirement is for 20FT, 40FT or 45FT containers. If the trailer needs to handle more than one container size, provide the expected container combinations and loading arrangements.
Provide the expected cargo weight and container weight. The stated maximum payload for this product is 80T, but the actual permitted operating load must be checked against the complete vehicle combination and local regulations.
Consider the 2 axle, 3 axle or 4 axle options according to the transportation task, axle load limits and route conditions. The axle brand and capacity should be confirmed with the manufacturer.
Discuss mechanical suspension or air suspension with lifting according to the operating environment and maintenance requirements. Confirm the tire and rim specifications for the destination market.
Review the main beam, king pin, landing gear, twist locks, accessories, painting and other specifications. Make sure that the final technical document reflects the agreed configuration.
A skeleton semi trailer is mainly used for transporting shipping containers. Its open chassis structure and twist locks are designed to support and secure containers during road transportation.
The product is listed for 20FT, 40FT and 45FT container transportation. The final container compatibility should be confirmed according to the trailer design and twist lock arrangement.
The supplied product information lists 2 axle, 3 axle and 4 axle configurations, with 13/16T axle options. FUWA, BPW or other axle brands are available for discussion.
The stated maximum payload is 80T. Actual legal payload depends on the complete vehicle combination, axle loads, road conditions and local regulations.
Yes. Jinjun accepts customization of LOGO, design and color, and can design a model according to the customer's requirements. Please provide your container sizes, transportation plan and preferred configuration.
The supplied specifications list mechanical suspension and air suspension with lifting, with American or German types. The suitable option should be selected according to the customer's operating conditions.
The supplied delivery information lists Qingdao, Lianyungang and Tianjin Port. The trailer can be carried by ro-ro ship or bulk cargo ship, and the freight cost depends on the volume.
If you are looking for a skeleton semi trailer for 20FT, 40FT or 45FT container transportation, Jinjun can discuss a suitable solution according to your business requirements. We offer 2 axle, 3 axle and 4 axle options, with customization available for LOGO, design, color and other configuration details.
To help us prepare a suitable quotation, please share your destination country, container sizes, expected payload, preferred axle configuration, suspension requirements and any special operating conditions. If you have a reference photograph or technical specification, you can also provide it for review.
Contact Jinjun to discuss your container transportation project and request a customized skeleton semi trailer solution.
