Customized Skeleton Semi Trailer for Container Transportation

A customized skeleton semi trailer is designed for businesses that transport shipping containers and require a chassis configuration matched to their working conditions. With an open frame structure and container locking points, a skeleton container semi trailer supports containers during road transportation while allowing them to be handled by suitable container lifting equipment. It is commonly used in port logistics, container yards, inland freight transportation, warehouse delivery, and intermodal supply chains.

Qingdao Jinjun Vehicle Co., Ltd. provides skeleton container semi trailers with different axle arrangements and customization options. The supplied product specification covers 2 axle, 3 axle, and 4 axle configurations for 20FT, 40FT, and 45FT containers. It lists a maximum payload of 80T, a Q345B main beam, and a range of running gear, suspension, tire, and accessory options. Trailer dimensions and configuration can be discussed according to the customer's requirements.

For a container transport fleet, the right trailer is not determined by one specification alone. Container dimensions, locking positions, tractor compatibility, axle loads, road conditions, loading equipment, and local regulations all influence the final selection. A customized skeleton semi trailer should be configured as part of the complete transport system so that it can serve the intended operation reliably and efficiently.

Jinjun's customization approach focuses on the actual application of the equipment. Customers can provide their container type, transport route, expected cargo weight, tractor information, preferred components, and destination market. These details help establish a technical configuration and delivery plan that align with the customer's transport needs.

What Is a Customized Skeleton Semi Trailer?

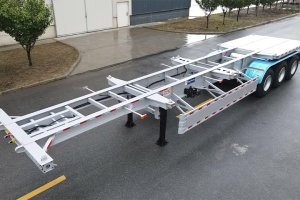

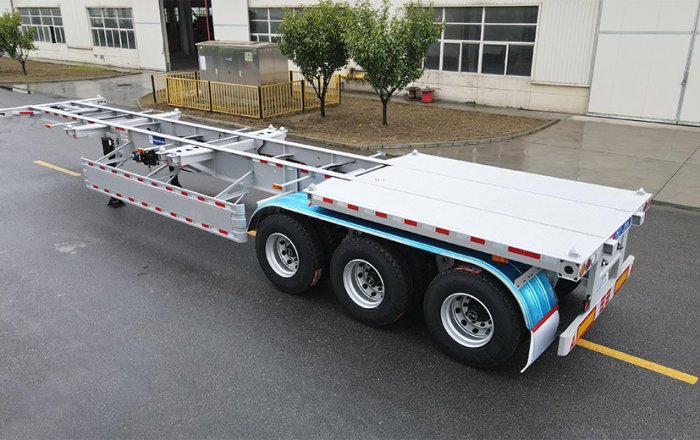

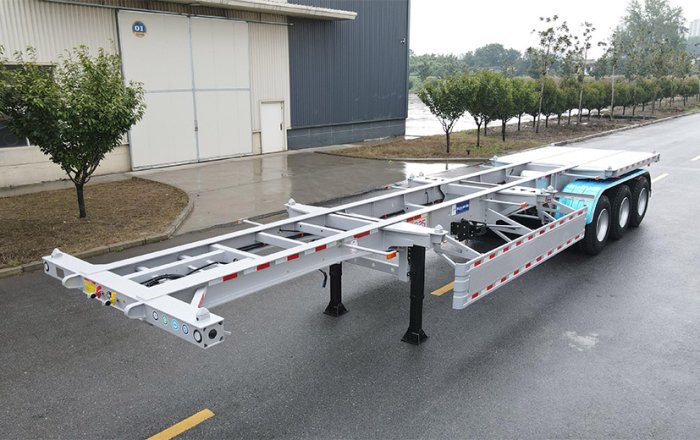

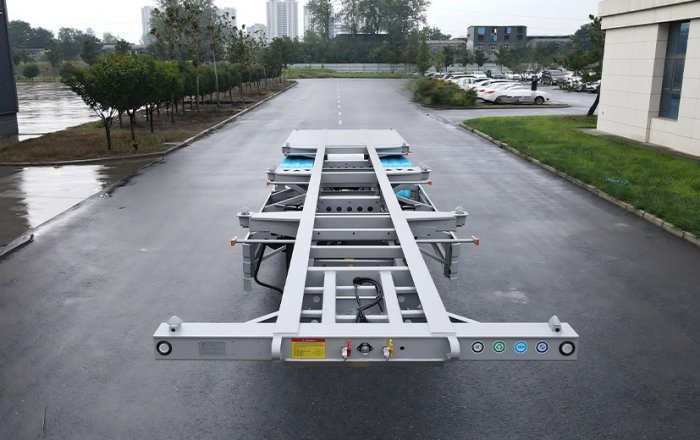

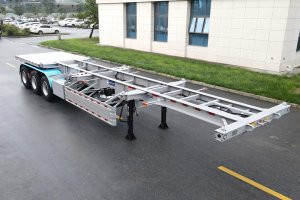

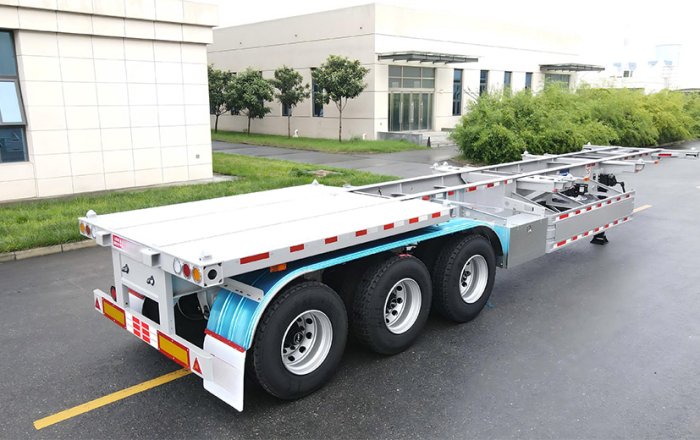

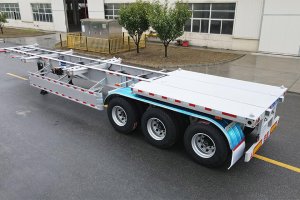

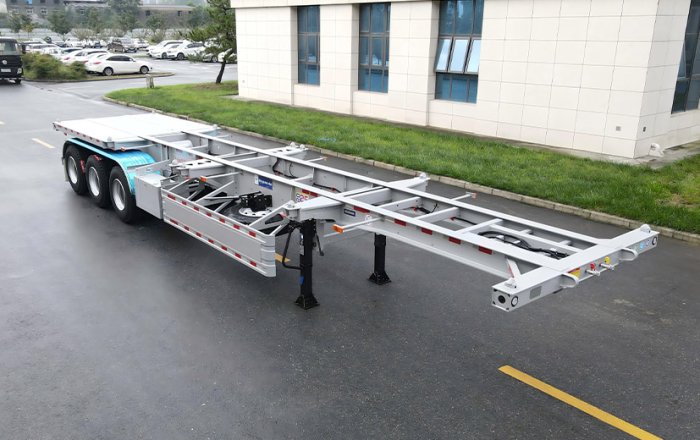

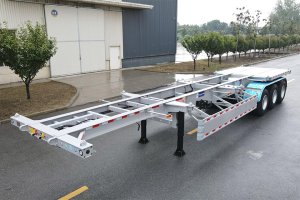

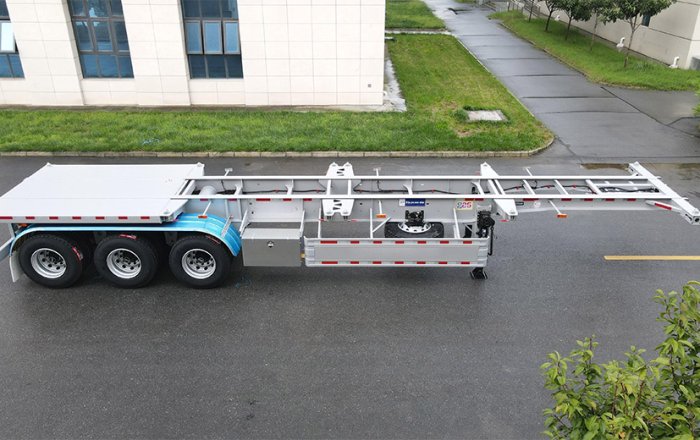

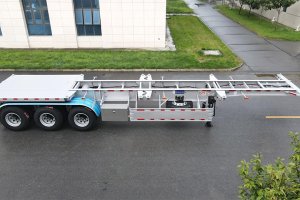

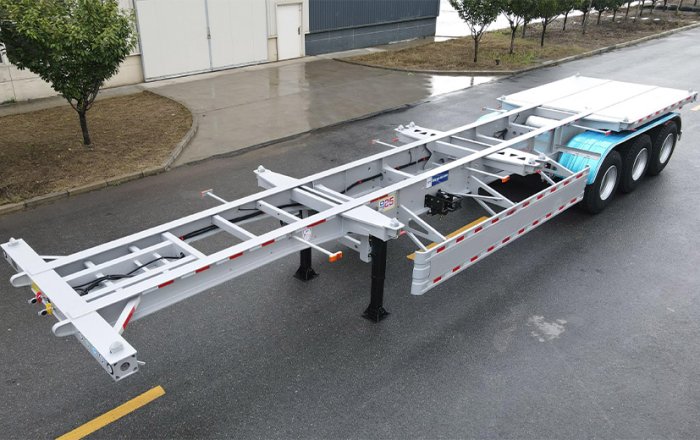

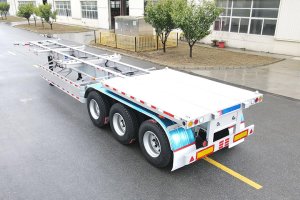

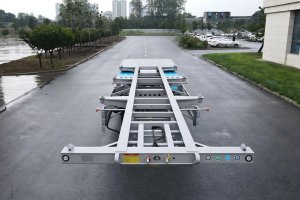

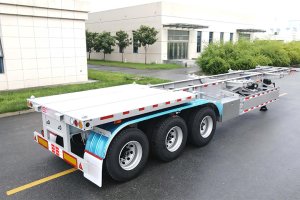

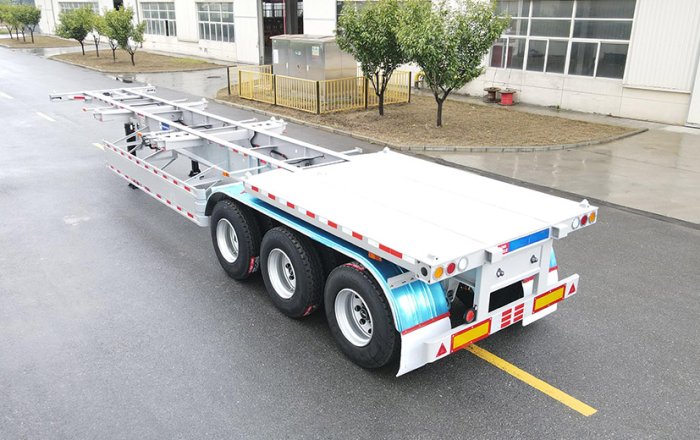

A skeleton semi trailer, also called a skeleton container trailer or container chassis trailer, is a road trailer developed primarily for carrying shipping containers. Unlike a flatbed semi trailer with a continuous loading platform, a skeleton trailer uses an open frame. The container is supported at designated points on the chassis and secured by container locks. The open structure reduces the need for a full deck and is designed around container transportation tasks.

The skeleton frame generally consists of longitudinal beams, crossmembers, a running gear system, container locking positions, and the components required to connect the trailer to a tractor. Each part works within the overall chassis structure. The main beam supports the frame, while the crossmembers and container locking positions help distribute and transfer loads. The axle and suspension configuration contributes to the trailer's road performance and load support.

Customization is important because container transport requirements differ between countries and businesses. A logistics company may mainly transport 40FT containers, while another operator may need to handle 20FT, 40FT, and 45FT containers. The trailer layout must be compatible with the intended container dimensions and locking positions. The required axle arrangement and chassis configuration should also be confirmed before production.

A customized skeleton semi trailer can be specified with selected components and finishes. Options in the supplied product information include different axle arrangements, mechanical suspension, lifting air suspension in American or German configurations, tire choices, landing gear, king pin specifications, and painting. The final selection should be based on the customer's operating environment and the compatibility of the complete tractor-trailer combination.

Main Advantages of a Skeleton Container Semi Trailer

• Lightweight structure: A lightweight design can help increase available cargo loading capacity and improve transportation efficiency, within the permitted gross vehicle weight and applicable regulations.

• High space utilization: The open skeleton structure can be adapted to different container sizes and specifications when the chassis is equipped with suitable locking positions.

• Efficient loading and unloading: A container-focused chassis can help shorten handling time and improve logistics efficiency at ports, container yards, and freight facilities.

These advantages are closely related to the purpose of a skeleton container trailer. The chassis is intended to support and secure a container rather than carry general cargo on a full deck. For operators that regularly move containers, selecting a compatible trailer can help improve equipment utilization and make routine transport operations more organized.

Actual operating results depend on the selected configuration, tractor, container, route, handling equipment, and working procedures. The maximum payload stated in the product specification should not be treated as a substitute for checking the permitted weight of the complete vehicle combination. Customers should verify local requirements before putting the trailer into service.

Lightweight Design and Transport Efficiency

Trailer tare weight is an important consideration in commercial transportation. A lighter chassis may allow more cargo to be carried within a permitted gross vehicle weight limit. However, payload is affected by the weight of the tractor, trailer, container, cargo, and other equipment. The legal loading capacity also varies according to local road regulations and axle load limits.

The skeleton frame is designed around the supporting and securing requirements of the container. By using an open structure instead of a continuous loading deck, the chassis can be tailored to container transport. This does not mean that structural strength can be reduced without consideration. The main beam, crossmembers, locking positions, suspension mounting points, and running gear must work together as a complete structure.

When reviewing a customized skeleton trailer, customers should consider both weight and structural requirements. The trailer must support the intended container and cargo while remaining compatible with the tractor and road conditions. The listed Q345B main beam and its dimensions form part of the supplied specification. These values should be reviewed alongside the chassis layout and the intended transport application.

Efficient transportation also depends on how well the trailer fits the customer's operation. A chassis matched to the container sizes handled by the fleet can reduce equipment mismatch. Clear communication about container types, cargo weight, route conditions, and tractor specifications helps the manufacturer recommend a suitable configuration.

Open Frame Structure and Container Compatibility

The open frame is one of the defining features of a skeleton semi trailer. The chassis provides support through designated container positions and twist locks rather than a continuous deck. This layout is designed for container transport and allows suitable lifting equipment to access the container during handling operations.

Container compatibility should be confirmed before manufacturing. The supplied product range includes configurations for 20FT, 40FT, and 45FT containers. The actual layout depends on the container dimensions, locking positions, and the customer's operating requirements. A trailer intended to handle several container sizes should be reviewed carefully to ensure that the selected configuration meets the required use cases.

Customers should identify the container types they transport most frequently and clarify whether the trailer will be dedicated to one size or used for different sizes. The container's dimensions and locking arrangement should be checked against the chassis specification. It is also important to consider the tractor, permitted overall dimensions, and axle loads required for the transport route.

For international logistics, a container may be transferred between road, sea, and rail transportation without unloading the cargo inside. The skeleton semi trailer provides the road transport connection in this process. A properly configured chassis can support efficient container movement between ports, yards, distribution centers, and inland destinations.

Improving Container Loading and Unloading Efficiency

Container loading and unloading efficiency depends on the coordination of the trailer, tractor, container handling equipment, and terminal procedures. A skeleton semi trailer is designed to work within this operation. Its open chassis and container locking points provide a dedicated support arrangement for the container, helping integrate the trailer into container handling workflows.

When cargo remains inside a container during transfers between transport modes, repeated handling of individual goods may be avoided. Depending on the logistics arrangement, the container can be moved between a road vehicle, a ship, or rail transport as a single unit. This can help simplify the movement of cargo and support a more organized supply chain.

The time required for loading and unloading varies according to terminal equipment, site layout, container condition, and operating procedures. A suitable skeleton chassis supports the handling process, while overall efficiency also depends on the transport provider and terminal operator coordinating their activities.

For fleet operators, the trailer should be selected according to the actual container handling system. The required container sizes, handling equipment, loading locations, and transport routes should be considered together. This helps ensure that the chassis configuration is practical for daily operations rather than selected solely by its headline specifications.

Applications of Customized Skeleton Semi Trailers

Customized skeleton semi trailers are used in a wide range of container transport operations. Typical applications include port-to-warehouse delivery, container yard transfers, inland container transportation, freight forwarding, industrial logistics, and intermodal transportation. The open chassis is suitable for companies that regularly move shipping containers as part of their business.

At ports, container trailers can transfer containers between terminals, storage areas, and nearby distribution locations. For inland logistics, they can deliver containers to factories, warehouses, construction sites, and customer facilities. In intermodal transportation, containers can be transferred between different transport modes while the cargo remains inside the container, according to the logistics plan.

Operating requirements vary by region. Road surfaces, gradients, axle load limits, tractor specifications, container types, and local regulations can affect the required trailer configuration. Customers should communicate their working conditions before choosing the final chassis arrangement.

For fleet procurement, the trailer should be evaluated in relation to the complete transportation system. Existing tractors, container types, average cargo weights, transport distances, loading facilities, and maintenance practices all matter. A configuration that fits these conditions can help improve equipment utilization and support more consistent fleet operations.

Customized Skeleton Semi Trailer Specifications

The following table presents the technical information supplied for the skeleton container semi trailer. The product specification lists 2 axle, 3 axle, and 4 axle configurations for 20FT, 40FT, and 45FT container transportation. The size can be customized, and the model can be designed according to the customer's requirements. Please confirm the final configuration and component selection before ordering.

Main Beam and Chassis Structure

The main beam is a major structural component of a skeleton semi trailer. It supports the chassis and helps transfer loads through the frame and running gear. The supplied product specification identifies Q345B as the main beam material. The listed dimensions are a height of 500mm, an upper plate thickness of 14mm, a lower plate thickness of 16mm, and a middle plate thickness of 8mm.

The main beam dimensions should be considered together with the complete chassis design. Crossmembers, container locking positions, suspension mounting points, and other structural components work together to support the container during transportation. The final arrangement should correspond to the container type and operating conditions for which the trailer is intended.

For customers with particular transport requirements, the model and size can be customized. Providing container dimensions, tractor information, cargo requirements, and route conditions before production helps define a suitable chassis configuration. Any requested changes should be confirmed in the final technical specification.

Axle, Suspension and Running Gear Options

The supplied specification lists 2 axle, 3 axle, and 4 axle configurations, with axle options of 13T or 16T. FUWA, BPW, or other axle brands are available. The appropriate axle arrangement should be selected according to the required payload, applicable axle load limits, road conditions, and fleet operating requirements.

Suspension options include mechanical suspension and lifting air suspension in American or German configurations. Mechanical suspension is commonly used in commercial trailer applications. Lifting air suspension may be considered when it is suitable for the customer's transport conditions and vehicle requirements. The final suspension type should be confirmed as part of the complete trailer specification.

The listed leaf spring specification is 90(w)mm*13/16(thickness)mm*10(layer). The landing gear is specified as 28t heavy duty, with JOST brand or other options. The king pin is available in 2"(50mm)or3.5"(90mm), with JOST brand or other options. These components should be compatible with the tractor and intended operating arrangement.

Running gear selection also needs to consider the route and the fleet's maintenance capability. Customers should provide information about road conditions, typical loading, and the tractor model so that the axle and suspension arrangement can be reviewed in context. The final component brands and specifications should be stated clearly in the order confirmation.

Container Locks, Tires and Trailer Accessories

Twist locks secure the container to the trailer chassis. The supplied specification lists 12 units. Their positions must correspond to the selected container dimensions and the trailer layout. Correct container securing is important for transportation safety, so the locking arrangement should be confirmed before production and checked during operation.

The supplied accessory package includes one tooling box with a set of standard trailer tools and one spare tire carrier. These components support basic operation and maintenance. Customers should identify any additional equipment required for their fleet and confirm it before the trailer is manufactured.

The tire options listed for this product are 12.00R22.5, 315 80R22.5, and 11.00R20, with the brand optional. The specified rim size is 9.00-22.5. Tire selection should take account of road conditions, load requirements, applicable regulations, and the customer's existing fleet standards.

Painting is available in any color through the stated powder coating process. The exterior finish can be selected to match company identity or fleet management requirements. The selected color and finish should be confirmed as part of the customization details.

Customization Options for Different Markets

Container transportation requirements vary by country, road network, business model, and logistics process. Jinjun accepts customization of LOGO, DESIGN, COLOR, and other details. The supplied product information also states that the model can be designed according to the customer's requirements.

Customization may involve the trailer size, container compatibility, axle arrangement, suspension, tire selection, king pin, landing gear, painting, and accessory package. Customers can provide their existing fleet specifications or describe the intended transport conditions. This information helps establish a configuration that fits the planned application.

For operators managing several trailers, consistency can be useful for driver familiarization, spare parts planning, maintenance management, and dispatching. A fleet may choose similar axle and suspension configurations across equipment where the operating requirements are comparable. The final configuration should still be selected according to local road regulations and the intended cargo.

International customers should also consider import requirements and shipping arrangements. The destination country, port, and transport method can affect the delivery plan. Confirming these details early helps align technical configuration, production arrangements, and logistics planning.

Shipping, Packaging and Delivery

The supplied shipping information states that the trailer can be shipped by sea from Qingdao, Lianyungang, or Tianjin Port. It may be carried by a ro-ro ship or a bulk cargo ship. Freight costs depend on the volume and the actual shipping arrangement.

Before shipment, customers should confirm the destination port, delivery terms, shipping schedule, and import documentation requirements. The selected shipping method may depend on the trailer dimensions, available vessel arrangements, and the overall logistics plan. The final shipping arrangement should be confirmed according to the order details.

When requesting a quotation, providing the destination country and port, required trailer configuration, order quantity, and preferred shipping method helps the supplier prepare a relevant freight estimate. Freight charges should be confirmed based on the actual shipment rather than assumed from a general estimate.

For customized equipment, it is useful to confirm the technical specification and shipping plan together. This helps ensure that the trailer configuration, production details, and delivery arrangement are consistent with the customer's requirements.

How to Choose a Customized Skeleton Trailer

Begin by confirming the container size and type. A trailer designed for 20FT, 40FT, or 45FT containers should have a compatible chassis layout and locking positions. If the trailer is expected to transport more than one container size, this requirement should be clearly stated before selecting the configuration.

Next, review the tractor and local road regulations. The king pin, axle arrangement, permitted axle loads, overall dimensions, tires, and suspension must be compatible with the tractor and route. The trailer should be assessed as part of a complete tractor-trailer combination rather than as an independent piece of equipment.

Operating conditions also matter. Port transfers, long-distance inland transportation, and frequent container yard movements may involve different road surfaces, handling facilities, and maintenance requirements. Sharing the route, expected cargo weight, container types, and fleet information with the manufacturer can help confirm a suitable configuration.

Before placing an order, review the technical specification, customization details, component brands, shipping method, and delivery arrangements. Clear confirmation helps reduce the possibility of configuration misunderstandings and aligns the trailer with the customer's transport requirements.

Frequently Asked Questions

· What is a customized skeleton semi trailer used for?

It is designed for container transportation, including port logistics, container yard transfers, inland container delivery, freight forwarding, and intermodal transport. The final configuration should match the container and operating requirements.

· Which container sizes are listed in the product specification?

The supplied specification lists 20FT, 40FT, and 45FT skeleton container semi trailer configurations. The exact chassis layout should be confirmed according to the required container size and application.

· What is the maximum payload stated for this trailer?

The supplied maximum payload is 80T. The actual permitted loading depends on the complete vehicle combination and the applicable transport regulations.

· Can the skeleton semi trailer be customized?

Yes. The supplied information states that LOGO, design, color, and size can be customized, and that the model can be designed according to the customer's requirements.

· Which axle and suspension options are available?

The listed options include 2 axle, 3 axle, and 4 axle configurations, 13T or 16T axles, FUWA/BPW or other brands, and mechanical suspension or lifting air suspension in American or German configurations.

· Which tire sizes are listed?

The listed tire options are 12.00R22.5, 315 80R22.5, and 11.00R20, with the tire brand optional. The specified rim size is 9.00-22.5.

· Which ports are listed for shipping?

The supplied shipping information lists Qingdao, Lianyungang, and Tianjin Port. The trailer may be transported by ro-ro ship or bulk cargo ship, and freight costs depend on the volume and shipping arrangement.

Request a Customized Trailer Quote

If you are looking for a customized skeleton semi trailer for container transportation, Qingdao Jinjun Vehicle Co., Ltd. can help review your required configuration. Please provide the container dimensions, expected cargo weight, axle preference, suspension requirements, tractor information, destination country, port, and order quantity.

With these details, the trailer specification and shipping arrangement can be reviewed according to your transport requirements. Contact Jinjun to discuss a customized skeleton container semi trailer solution for your logistics operation.
