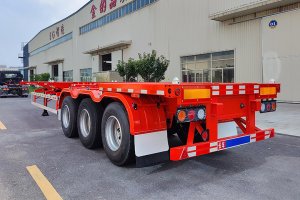

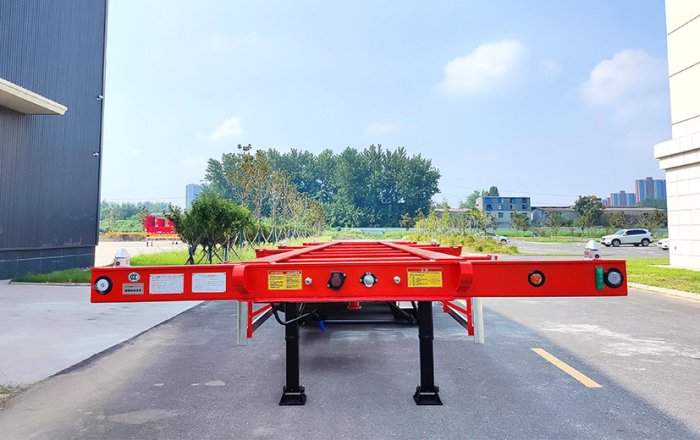

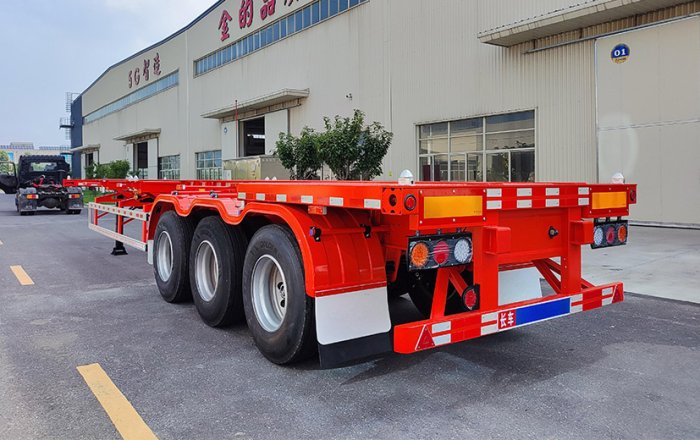

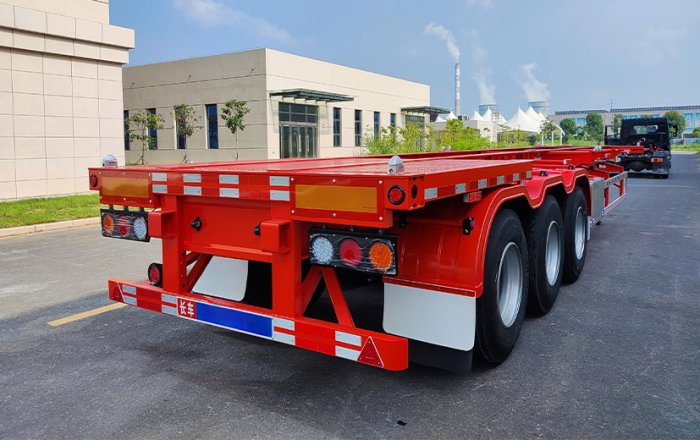

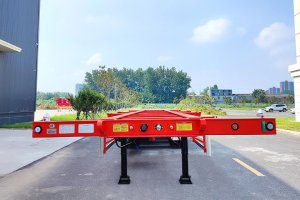

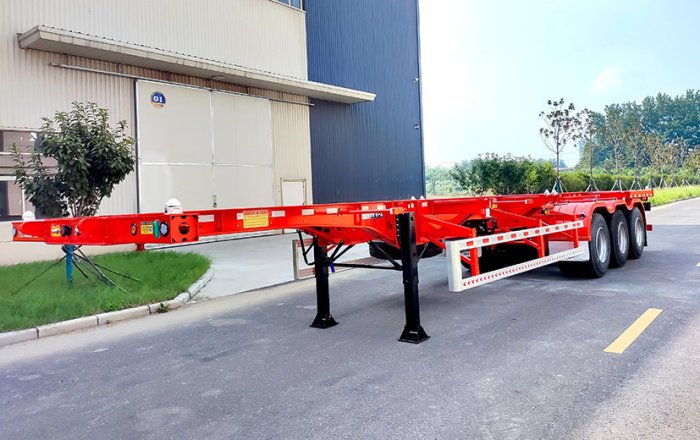

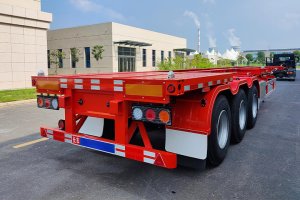

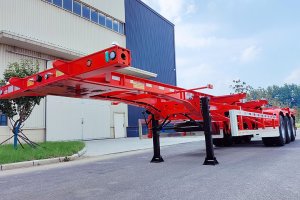

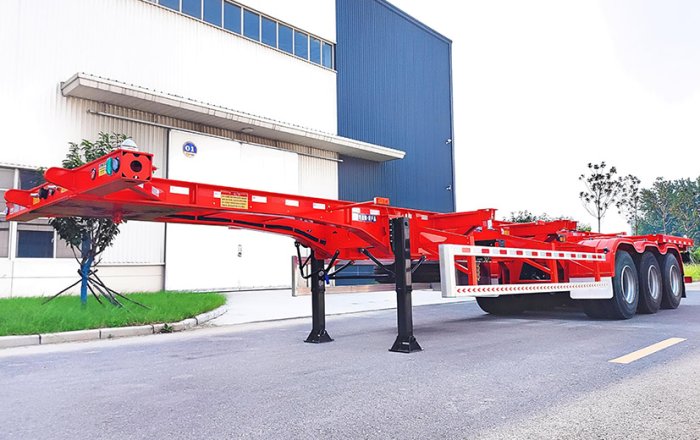

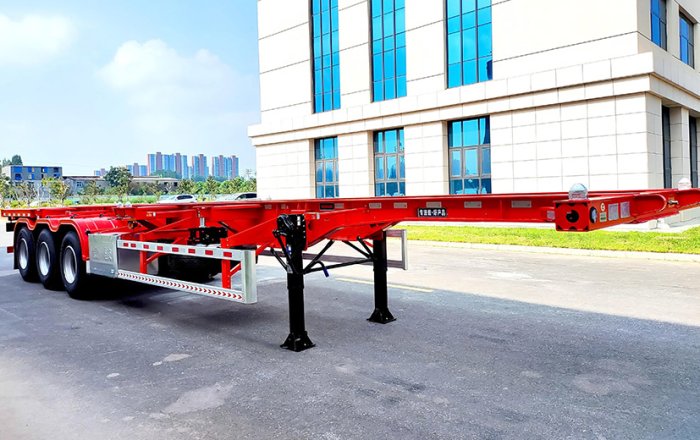

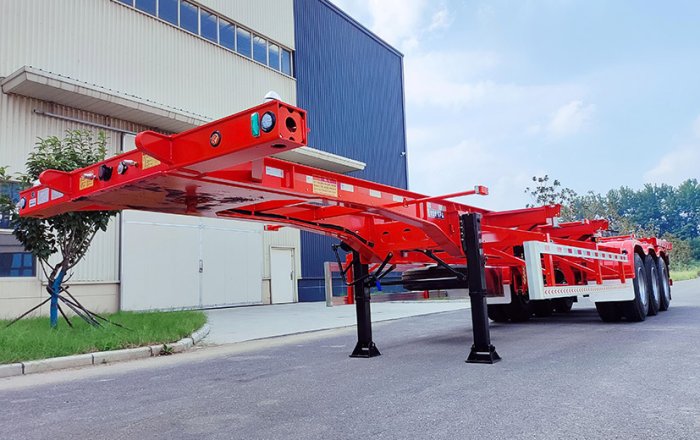

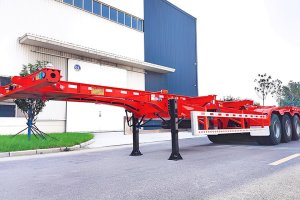

Skeleton Semi Trailer is a kind of semi-trailer with standardizes size (customization) and steel skeleton structure, mainly used for transporting container.
A skeleton semi trailer is a specialized container transport trailer designed for carrying 20FT, 40FT and 45FT containers. With an open skeleton frame, lightweight structure and standardized container locking system, it provides an efficient solution for container transportation between ports, logistics centers, warehouses, factories and other cargo handling locations.
Our skeleton container semi trailer is available in 2, 3 and 4 axle configurations, with a maximum payload of up to 80T. The trailer is designed to accommodate different container sizes while maintaining efficient loading and unloading operations. Customers can also customize the trailer according to specific transportation requirements, including logo, design, color and other available configurations.
As a professional semi trailer manufacturer, we provide skeleton semi trailers for international container transportation applications. The trailer uses a Q345B main beam with a 500mm beam height and a specified plate thickness configuration. Mechanical suspension or air suspension with lifting is available, together with FUWA, BPW or other axle options.
A skeleton semi trailer, also called a skeleton container trailer or container chassis trailer, is designed specifically for transporting shipping containers. Unlike a conventional flatbed semi trailer, the skeleton trailer uses an open frame structure with container twist locks positioned at the required locations.
The open skeleton structure reduces unnecessary platform material while providing dedicated support points for containers. This makes the trailer suitable for container transportation where the cargo itself is enclosed within a standardized shipping container.
Depending on the selected configuration, the trailer can transport 20FT, 40FT or 45FT containers. The available 2/3/4 axle configurations allow customers to select a suitable trailer according to their required payload and transportation conditions.
The skeleton design is particularly suitable for container logistics because the trailer does not require a full solid loading deck. Instead, the container is secured directly through the container locking system, creating an efficient connection between the container and trailer chassis.
The skeleton semi trailer is designed for transporting standard shipping containers in logistics and freight operations. It can be used for container movements between ports, terminals, distribution centers, warehouses, factories and other destinations.
For customers operating container transportation fleets, the open structure and standardized twist lock configuration provide a practical solution for handling different container sizes.
One of the main advantages of a skeleton container trailer is its lightweight open-frame structure. By using a skeleton design instead of a complete solid platform, unnecessary structural weight can be reduced.
A lighter trailer can provide greater potential cargo-carrying capacity within applicable legal and operating limits. This can help improve transportation efficiency, especially for logistics companies handling large numbers of containers.
The open skeleton structure is designed around the dimensions of standard shipping containers. It can accommodate different container sizes and make effective use of the available trailer length.
The 20FT, 40FT and 45FT container configurations allow the same product series to serve different container transportation requirements. This flexibility is particularly valuable for logistics operators handling containers with different dimensions.
The skeleton semi trailer is designed for efficient container handling. Containers can be positioned directly onto the chassis and secured through the twist lock system.
This configuration can reduce unnecessary loading and unloading operations compared with trailers that require cargo to be manually loaded onto a conventional deck. Faster container handling can help reduce turnaround time and improve overall logistics efficiency.
The trailer is available for 20FT, 40FT and 45FT container transportation. Customers can select the appropriate configuration according to their fleet requirements and container transportation routes.
The following table provides the complete technical specifications supplied for this skeleton semi trailer. The listed parameters are retained without changing the original technical data.
| Item | Specification |
|---|---|
| Product Type | 2/3/4 axle 20FT/40FT/45FT skeleton container semi trailer |
| Customization | We accept customization of any LOGO/DESIGN/COLOR etc |
| Max Payload | 80T |
| Size | 12400*2480*1540mm (can be customized) |
| Main Beam | Q345B |
| Main Beam Height | Height 500mm, upper plate is 14mm, down plate is 16mm, middle plate is 8mm. |

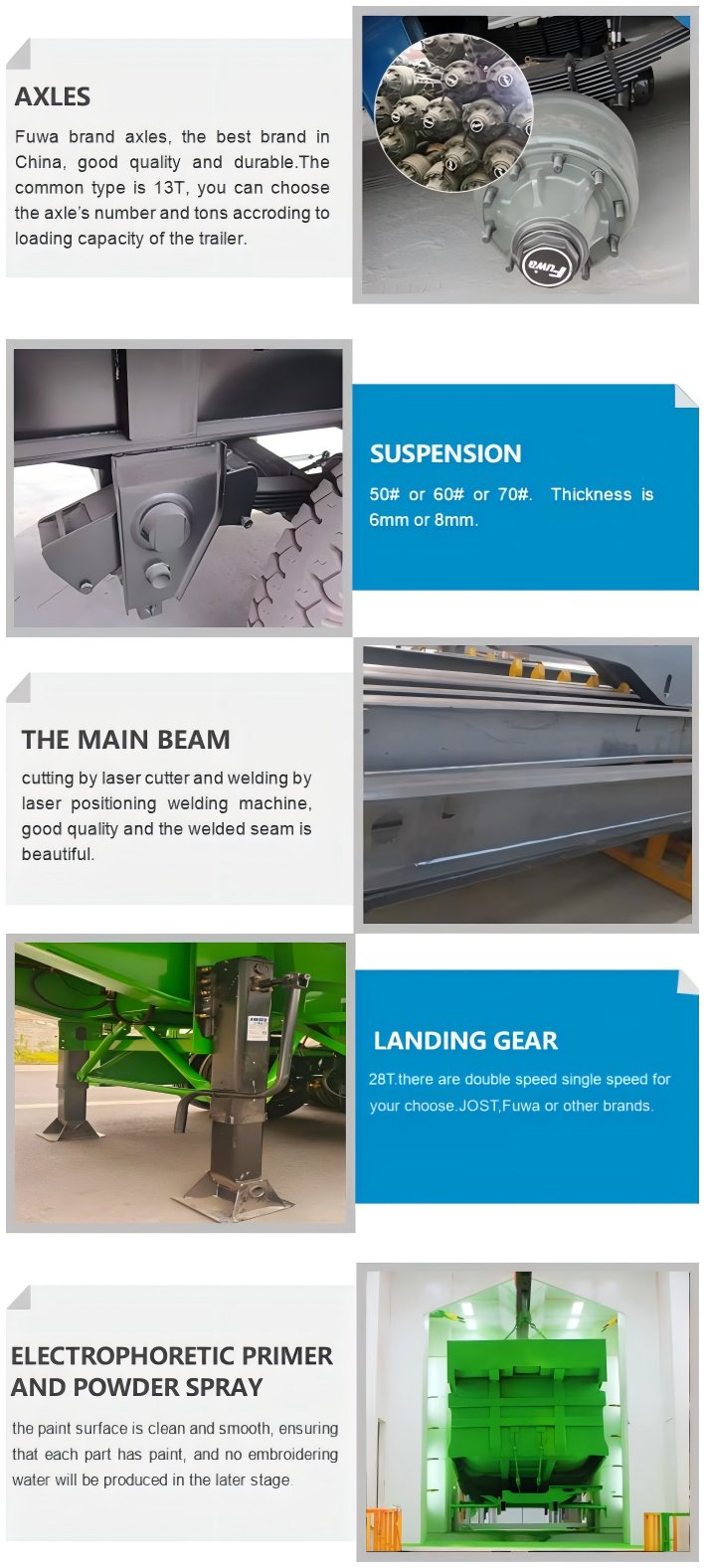

| Axle | 2/3/4 axle*13/16T, FUWA/BPW brand or others |
| Suspension | Mechanical Suspension / Air Suspension with lifting (American or German) |
| Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) |
| Landing Gear | 28t Heavy Duty Landing Gear, JOST brand or others |
| King Pin | 2"(50mm) or 3.5"(90mm) JOST brand or others |
| Tire | 12.00R22.5/315 80R22.5/11.00R20 (Brand optional) |
| Rim | 9.00-22.5 |
| Twist Lock | 12 units |
| Accessory | One tooling box with a set of standard trailer tool. |
| Spare Tire Carrier | One piece |
| Painting | Any color will be available with powder coating process |
| Packaging and Delivery | By sea transfer from Qingdao or Lianyungang or Tianjin Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume. |
| Remarks | We can design model according to customer's requirement |
The main beam of this skeleton semi trailer uses Q345B material. The main beam height is 500mm, with an upper plate thickness of 14mm, down plate thickness of 16mm and middle plate thickness of 8mm.
The main beam is a key structural component of the container chassis. Its configuration is designed to provide the supporting structure required for container transportation while maintaining the open skeleton design.
Using a dedicated skeleton frame allows the trailer to focus its structural design around container support and locking points rather than requiring a complete solid loading deck.
The specified main beam height is 500mm. The upper, middle and lower plate configuration is 14mm, 8mm and 16mm respectively, according to the supplied product specification.
These dimensions are part of the standard product configuration and can be considered when customers evaluate the trailer according to their transportation requirements.
A major advantage of this skeleton semi trailer is its ability to support different container transportation requirements. The product is available for 20FT, 40FT and 45FT containers.
The skeleton chassis can be used for 20FT container transportation. The dedicated container locking points help secure the container during transportation.
40FT containers are widely used in international freight transportation. The skeleton trailer provides a dedicated chassis configuration for moving 40FT containers between ports, terminals, warehouses and other locations.
The trailer is also designed for 45FT container applications. Customers requiring 45FT container transportation can confirm the required configuration before production.
The ability to support multiple container sizes makes the skeleton container trailer suitable for logistics fleets that need flexibility across different container transportation operations.
This skeleton semi trailer is equipped with 12 units of twist locks. The twist lock system is an important part of a container chassis because it provides the connection point between the trailer and the shipping container.
The dedicated locking system allows the container to be positioned and secured on the trailer frame. This is particularly important during long-distance transportation, where the container needs to remain securely connected to the chassis.
The 12-unit twist lock configuration is included in the supplied product specification. Customers with special container transportation requirements can discuss the required configuration before production.
Because the container is handled as a complete unit, loading and unloading operations can be integrated with container lifting equipment at ports, logistics yards and warehouses. This can help reduce unnecessary cargo handling and improve transportation efficiency.
The skeleton container semi trailer is available with 2, 3 or 4 axles. The axle specification is 2/3/4 axle*13/16T, with FUWA, BPW or other brands available.
Customers can select the axle configuration according to the required payload and transportation application. For different operating conditions, the suspension system can be configured as mechanical suspension or air suspension with lifting.
Mechanical suspension provides a straightforward configuration for container transportation applications. It is suitable for customers who prefer a conventional suspension system for their fleet.
Air suspension with lifting is also available. The product specification allows American or German air suspension options. Customers can select the preferred configuration according to their transportation requirements.
The specified leaf spring is 90(w)mm*13/16(thickness)mm*10(layer). This configuration is part of the listed suspension specification.

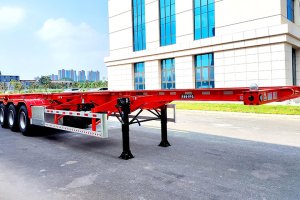

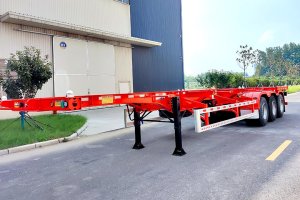

The skeleton semi trailer uses 28t heavy duty landing gear, with JOST brand or other brands available. The landing gear provides support for the trailer when it is disconnected from the tractor.
The king pin options include 2"(50mm) or 3.5"(90mm), with JOST brand or other brands available. These components can be selected according to the customer's preferred configuration.
The 28t heavy duty landing gear is designed for supporting the semi trailer during parking and coupling operations. JOST or other brands can be selected.
The available king pin specifications are 2"(50mm) and 3.5"(90mm). Customers can select the required king pin configuration when confirming the trailer specification.
The available tire specifications include 12.00R22.5, 315 80R22.5 and 11.00R20. Tire brands are optional according to the customer's requirements.
The rim specification is 9.00-22.5. The tire and rim configuration can be selected according to the overall trailer configuration and customer requirements.
For international fleet operators, selecting an appropriate tire specification is important for ensuring compatibility with the tractor and maintaining convenient replacement and maintenance arrangements in the destination market.
The standard accessory configuration includes one tooling box with a set of standard trailer tools. One spare tire carrier is also included.
These accessories provide practical support for routine trailer operation and maintenance. Customers with additional equipment requirements can discuss customized accessory configurations when placing an order.
One tooling box with a set of standard trailer tools is included according to the product specification. The tooling box provides a dedicated storage location for trailer tools.
One spare tire carrier is included. This allows the trailer to carry a spare tire as part of its equipment configuration.
Every container transportation operation can have different requirements. For this reason, we accept customization of LOGO, design and color. The trailer size can also be customized according to the customer's requirements.
Customers can provide information about the container sizes they transport, required payload, preferred axle configuration and destination market. Based on these requirements, the appropriate skeleton trailer configuration can be discussed before production.
Any LOGO, design and color can be customized according to customer requirements. The trailer uses a powder coating process, and any color will be available according to the supplied specification.
The listed trailer size is 12400*2480*1540mm, and the size can be customized. Customers with specific container transportation requirements can provide their preferred dimensions for evaluation.
We can design the model according to the customer's requirement. This allows the trailer configuration to be adapted to specific fleet requirements, container sizes and transportation applications.
Skeleton semi trailers are widely used in container logistics because they are specifically designed around standardized shipping containers. They can be used across different stages of the container transportation process.
The trailer can be used to move containers between ports, container terminals and nearby logistics facilities. Its dedicated container chassis structure supports efficient handling of standard containers.
Logistics companies can use skeleton container trailers to transport containers between warehouses, distribution centers and other cargo facilities.
For international logistics operations, the trailer can transport 20FT, 40FT and 45FT containers according to the selected configuration. The open skeleton frame is designed specifically for container handling rather than general loose cargo.
Factories and industrial companies can use container chassis trailers to move loaded containers between production facilities, warehouses, ports and logistics centers.
The skeleton semi trailer can be transported by sea from Qingdao, Lianyungang or Tianjin Port. The supplied shipping options include Ro-Ro ship and bulk cargo ship transportation.
Freight cost depends on the volume. The final shipping cost can therefore be confirmed according to the trailer configuration, order quantity, loading method and destination.
For international customers, we can discuss the suitable shipping method according to the destination port and order requirements.
Qingdao Port is one of the available shipping points for the skeleton semi trailer.
Lianyungang Port is also available as a shipping point according to the product specification.
Tianjin Port is another available shipping point for international delivery.
The trailer can be carried by Ro-Ro ship or bulk cargo ship. The appropriate method can be selected according to the destination and shipment arrangement.
For container transportation companies, choosing a dedicated skeleton semi trailer can improve the efficiency of container handling and transportation. This product combines a lightweight open frame, multiple axle configurations and dedicated container locking equipment.
20FT, 40FT and 45FT container transportation
2/3/4 axle configurations
Maximum payload of 80T
12400*2480*1540mm standard size with customization available
Q345B main beam
500mm main beam height
14mm upper plate, 16mm down plate and 8mm middle plate
Mechanical suspension or air suspension with lifting
FUWA/BPW or other axle brands
28t heavy duty landing gear
2"(50mm) or 3.5"(90mm) king pin
12 units of twist locks
12.00R22.5/315 80R22.5/11.00R20 tire options
9.00-22.5 rims
One tooling box with a set of standard trailer tools
One spare tire carrier
Customized LOGO, design and color
Powder coating process
Ro-Ro and bulk cargo shipping options
If you are looking for a skeleton semi trailer for container transportation, you can send us your required container sizes, loading capacity, axle configuration and destination port.
We can provide a suitable skeleton container trailer configuration according to your requirements. Customization is available for trailer size, LOGO, design, color and other applicable specifications.
Whether you need 20FT, 40FT or 45FT container transportation, our team can discuss the required trailer configuration and shipping arrangement with you.
A skeleton semi trailer is mainly used for transporting shipping containers. Its open frame and container twist locks are designed specifically for container transportation.
The product is designed for 20FT, 40FT and 45FT containers.
The maximum payload listed for this skeleton semi trailer is 80T.
The trailer is available with 2, 3 or 4 axles. The axle specification is 2/3/4 axle*13/16T, with FUWA, BPW or other brands available.
Yes. The listed size is 12400*2480*1540mm, and customization is available.
Yes. LOGO, design and color customization are accepted. Any color will be available with the powder coating process.
The supplied specification includes 12 units of twist locks.
The available suspension systems are mechanical suspension and air suspension with lifting, with American or German configurations available.
FUWA, BPW and other axle brands are available.
The trailer can be shipped by sea from Qingdao, Lianyungang or Tianjin Port. Ro-Ro ship and bulk cargo ship transportation are available, and freight cost depends on the volume.
Yes. We can design the model according to the customer's requirements. Customers can provide container sizes, payload requirements and other specifications for a customized solution
