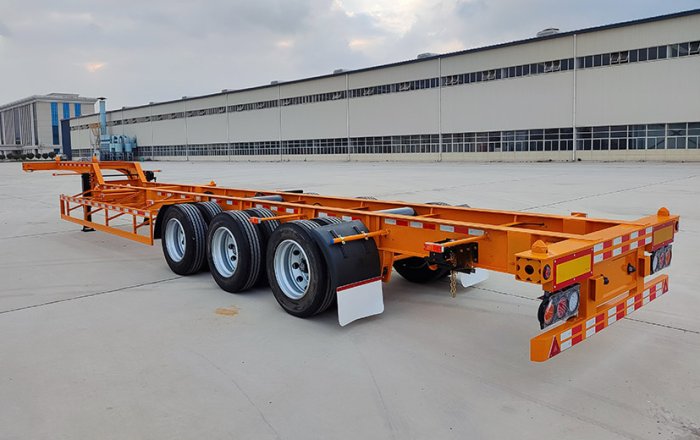

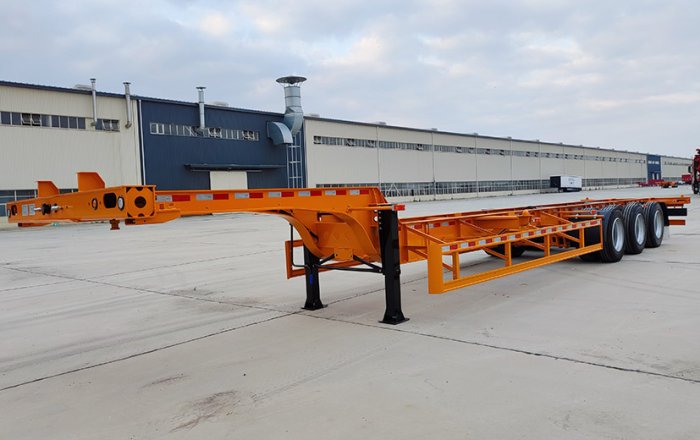

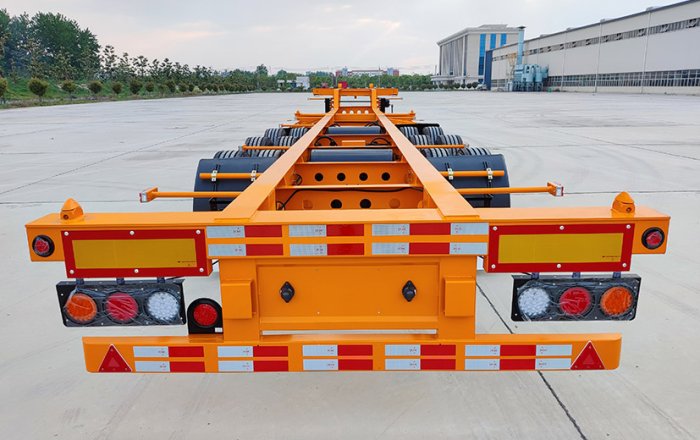

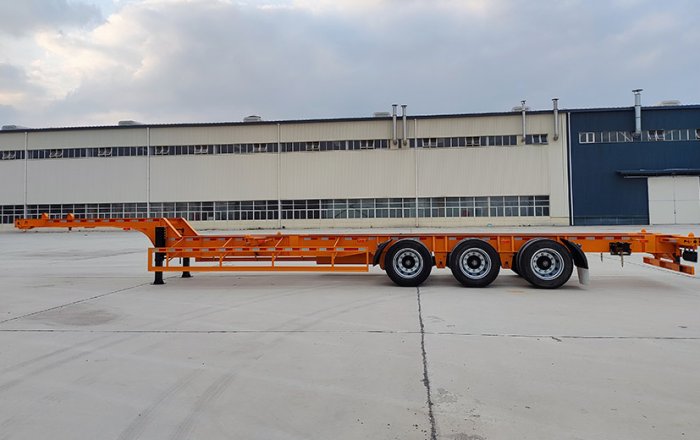

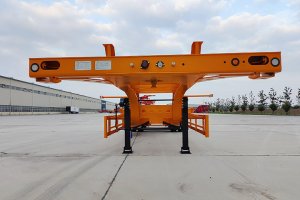

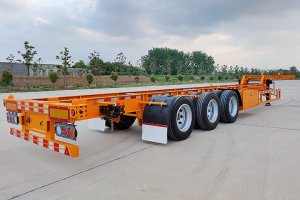

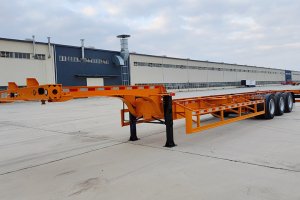

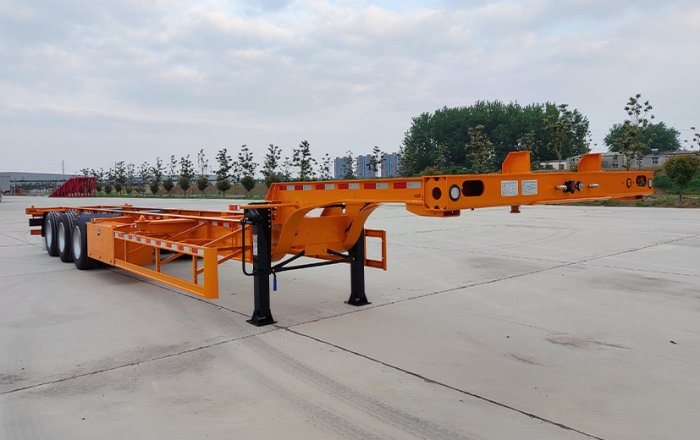

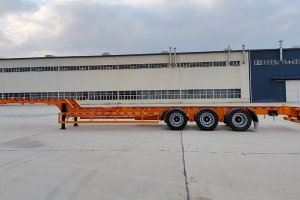

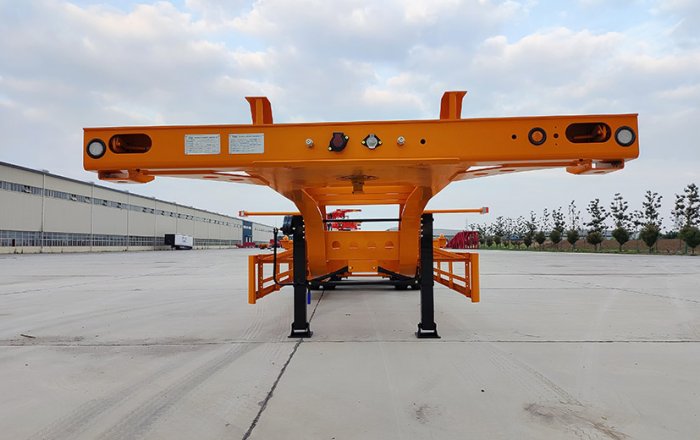

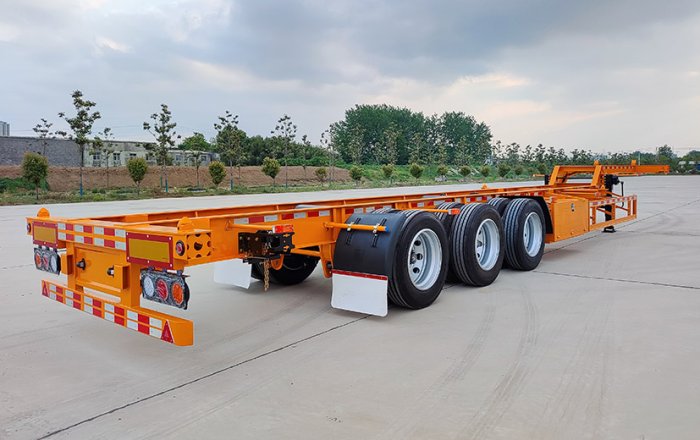

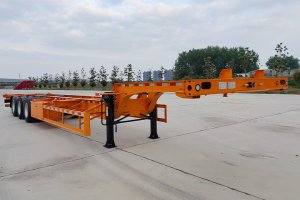

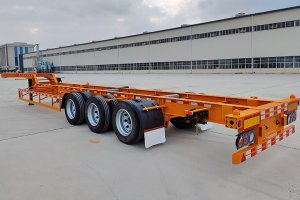

Skeleton Semi Trailer for 20FT, 40FT and 45FT Container Transport

A skeleton semi trailer is a specialized container transport trailer designed with an open chassis structure. Instead of a fully enclosed cargo platform, it uses a reinforced frame and container locking points to support and secure shipping containers during road transportation. This design makes the skeleton semi trailer a practical choice for container logistics, port transportation, freight forwarding, and intermodal transport operations.

Qingdao Jinjun Vehicle Co., Ltd. provides skeleton container semi trailers in 2 axle, 3 axle, and 4 axle configurations for 20FT, 40FT, and 45FT containers. The trailer can be customized according to container dimensions, cargo requirements, road conditions, and local transport regulations. With a maximum payload of 80T, a Q345B main beam, and multiple axle and suspension options, the Jinjun skeleton semi trailer can be configured for different container transportation applications.

For fleet operators and logistics companies, choosing a suitable container chassis is not only about carrying a container. It also involves vehicle tare weight, container compatibility, loading efficiency, running gear, durability, and long-term operating costs. A well-matched skeleton semi trailer helps improve transport utilization and supports consistent performance in daily logistics operations.

What Is a Skeleton Semi Trailer?

A skeleton semi trailer, also known as a skeleton container semi trailer or container chassis trailer, is built primarily for transporting standard shipping containers. Its chassis is formed by longitudinal beams, crossmembers, running gear, and container twist locks. The open frame provides a supporting structure while leaving most of the space beneath and around the container unobstructed.

Compared with a flatbed semi trailer, a skeleton trailer is designed specifically around container transportation. Its container locking arrangement helps secure the container in position, while the open structure reduces unnecessary platform components. This configuration is particularly suitable for logistics companies that regularly move containers between ports, container yards, distribution centers, warehouses, and inland destinations.

Skeleton container trailers are commonly used in intermodal logistics. Containers can be transferred between ships, rail terminals, and road vehicles without unloading the cargo inside. The trailer therefore becomes an important link in a container transport chain, helping reduce cargo handling and maintain the integrity of the loaded container.

Key Advantages of a Skeleton Container Semi Trailer

• Lightweight design: A lighter trailer structure can help increase the available cargo loading capacity and improve transportation efficiency, subject to the applicable vehicle and road regulations.

• High space utilization: The open skeleton structure can accommodate different container sizes and specifications when configured with suitable container locking positions.

• Efficient loading and unloading: The chassis is designed for container handling operations, helping shorten loading and unloading time and improve logistics efficiency.

These advantages are closely connected. An appropriate chassis configuration can support efficient container handling while keeping the trailer structure focused on its intended transportation function. For fleets operating frequent container routes, the combination of lightweight construction, container compatibility, and efficient handling can contribute to better equipment utilization.

Lightweight Design for Efficient Container Transportation

Trailer tare weight is an important consideration for container transport operators. A lower tare weight may provide more available payload within the permitted gross vehicle weight, although the actual legal payload depends on the tractor, axle configuration, road limits, and local regulations. The skeleton structure is designed to avoid unnecessary platform components while retaining the frame required to support the container.

For logistics companies, improving payload utilization can help make each trip more productive. When selecting a skeleton semi trailer, operators should consider the trailer's structural design together with the weight of the container, cargo, tractor, and other equipment. The complete vehicle combination must remain within the applicable limits.

Lightweight construction should not be considered separately from structural strength. The main beam, crossmembers, axle arrangement, suspension, and container locking points all contribute to the trailer's performance. The Jinjun skeleton semi trailer uses a Q345B main beam, while the final configuration can be selected according to the intended container type and working conditions.

Open Frame Structure and Container Compatibility

The open chassis is one of the defining features of a skeleton semi trailer. It is designed to support a container through a frame structure and container locks rather than a continuous cargo deck. This arrangement helps make the trailer suitable for container transport while allowing handling equipment to access the container during loading and unloading operations.

Container dimensions and locking positions must be matched to the trailer configuration. Jinjun offers skeleton container semi trailers for 20FT, 40FT, and 45FT containers, with 2 axle, 3 axle, and 4 axle options. The exact configuration should be confirmed according to the container specification, local road regulations, and the customer's transport requirements.

When ordering a container chassis, customers should provide the container size and type, expected cargo weight, transport route, and any special handling requirements. These details help determine the suitable trailer layout and reduce the risk of incompatibility during actual operation.

Loading and Unloading Efficiency

Container transport depends on the smooth coordination of tractors, trailers, container handling equipment, and terminal operations. A skeleton semi trailer is designed to work within this process. Its open frame and container locking points provide a dedicated platform for container placement and securing, supporting efficient handling at ports, container yards, and logistics facilities.

Reducing unnecessary handling steps can help shorten the time required to move a container between transport stages. The container can remain loaded while it is transferred between different modes of transportation, depending on the logistics arrangement. This helps reduce repeated cargo handling and supports a more organized transport workflow.

Actual loading and unloading time varies according to the container handling equipment, site layout, operating procedures, and container condition. A suitable trailer configuration is therefore one part of an efficient logistics system rather than a replacement for proper terminal planning.

Applications of Skeleton Semi Trailers

Skeleton container semi trailers are used in a wide range of container logistics applications. Common operations include port-to-warehouse transportation, container yard transfers, inland container delivery, freight forwarding, and intermodal transport. Their open chassis structure is suited to operators that regularly handle shipping containers as part of their daily work.

For port logistics, a skeleton trailer can transport containers between terminals and nearby storage or distribution locations. For inland logistics, it can support container delivery to factories, warehouses, and customer sites. In intermodal operations, the container can be transferred between road vehicles and other transport modes without unloading the cargo from the container itself.

Different markets may have different requirements for axle loads, overall dimensions, suspension, tires, and container locking arrangements. Before production, customers should confirm the intended application and operating environment so that the trailer can be configured to meet their practical needs.

Jinjun Skeleton Semi Trailer Specifications

The following table presents the available reference specifications for the Jinjun 2 axle, 3 axle, and 4 axle skeleton container semi trailer designed for 20FT, 40FT, and 45FT containers. Certain components and dimensions can be customized. Please confirm the final configuration before placing an order.

Main Beam and Chassis Structure

The main beam is a key structural component of a skeleton semi trailer. It supports the chassis and helps distribute loads through the frame and running gear. The specified Jinjun main beam material is Q345B, with a beam height of 500mm, an upper plate thickness of 14mm, a lower plate thickness of 16mm, and a middle plate thickness of 8mm.

These dimensions form part of the trailer's structural specification. The complete chassis design also includes crossmembers, container locking positions, suspension mounting points, and other components. The configuration should be assessed as a complete structure according to the intended container type and transport conditions.

For customers with special requirements, the trailer size and design can be customized. Before confirming the order, it is advisable to review the container dimensions, cargo requirements, tractor specifications, and local operating limits together.

Axle, Suspension and Running Gear Options

The Jinjun skeleton semi trailer is available with 2, 3, or 4 axles, with 13T or 16T axle options and FUWA, BPW, or other brands. The axle configuration should be selected according to the required payload, container transport conditions, road regulations, and the customer's operating preferences.

Suspension options include mechanical suspension and lifting air suspension in American or German configurations. Mechanical suspension is a familiar solution for many commercial transport applications. Air suspension with lifting functions may be considered when the operating conditions and customer requirements call for it. The final choice should be confirmed according to the vehicle configuration and intended use.

The specified leaf spring dimensions are 90(w)mm*13/16(thickness)mm*10(layer). The trailer can also be configured with 28t heavy-duty landing gear, JOST or other brands, and a 2"(50mm)or3.5"(90mm) king pin from JOST or other brands. These components should be matched with the tractor and operating requirements.

Container Locks and Trailer Accessories

Container twist locks are essential components for securing a container to the chassis. The specified configuration includes 12 twist lock units. Their arrangement must correspond to the container dimensions and the selected trailer design to help secure the container during transportation.

The standard accessory package includes one tooling box with a set of standard trailer tools and one spare tire carrier. These accessories support routine operation and maintenance. Customers should confirm the required tools, spare tire arrangement, and other optional equipment before production.

Wheel and tire specifications are also important when preparing a trailer for a particular market. The available tire sizes are 12.00R22.5, 315 80R22.5, and 11.00R20, with the brand optional. The specified rim size is 9.00-22.5. Final selection should be made according to road conditions, regulations, and the customer's fleet standards.

Customized Skeleton Semi Trailer Solutions

Container transport requirements vary between countries, routes, and logistics operations. Jinjun accepts customization of LOGO, design, color, and other details. The trailer size can also be customized, and the model can be designed according to the customer's requirements.

Customization may involve confirming the container type, axle arrangement, suspension, tires, king pin, landing gear, paint color, and other equipment. Customers can provide their existing fleet specifications or explain their operating conditions. This information helps establish a practical configuration for the intended application.

For fleet procurement, consistency between trailers can also be important. Matching specifications across a fleet may simplify driver familiarization, spare parts management, maintenance planning, and daily dispatching. The final design should balance transport requirements, local regulations, and operating costs.

Shipping, Packaging and Delivery

Jinjun skeleton semi trailers can be shipped by sea from Qingdao, Lianyungang, or Tianjin Port. The transportation method may include a ro-ro ship or a bulk cargo ship. The freight cost depends on the volume, shipping arrangement, and other logistics factors.

Before shipment, customers should confirm the destination port, required shipping schedule, delivery terms, and applicable import documentation. The selected shipping method may depend on the trailer dimensions, shipping availability, and the overall logistics plan.

When requesting a quotation, providing the destination country and port, trailer configuration, quantity, and preferred delivery method can help the supplier prepare a more relevant transportation estimate. Freight charges should be confirmed separately based on the actual shipping arrangement.

How to Choose the Right Skeleton Semi Trailer

The first step is to identify the container sizes that will be transported. A trailer intended for 20FT containers may require a different locking arrangement from one intended for 40FT or 45FT containers. The required axle count and suspension should also be considered alongside the container and cargo weight.

Next, review the local road regulations and the tractor specifications. Axle load limits, overall dimensions, king pin compatibility, tire requirements, and suspension preferences can affect the final configuration. A trailer should be selected as part of a complete tractor-trailer combination rather than as an isolated unit.

Finally, consider the transport route and operating environment. Port transfers, long-distance inland delivery, and frequent container yard operations may place different demands on the equipment. Sharing these details with the manufacturer helps clarify the required configuration before production.

Frequently Asked Questions

· What container sizes can the Jinjun skeleton semi trailer transport?

The specified product is designed for 20FT, 40FT, and 45FT containers. The final locking arrangement should be confirmed according to the container specification and trailer configuration.

· How many axles are available?

The product is available in 2 axle, 3 axle, and 4 axle configurations. Axle options include 13T and 16T, with FUWA, BPW, or other brands.

· What is the maximum payload?

The stated maximum payload is 80T. Actual permitted loading depends on the complete vehicle combination and the applicable transport regulations.

· Can the trailer size and appearance be customized?

Yes. The size can be customized, and Jinjun accepts customization of LOGO, design, and color. The model can be designed according to the customer's requirements.

· Which suspension types are available?

The stated options are mechanical suspension and lifting air suspension in American or German configurations. The suitable option depends on the intended application and customer requirements.

· Which ports are available for sea shipment?

Shipment can be arranged from Qingdao, Lianyungang, or Tianjin Port. Ro-ro ships or bulk cargo ships may be used, and freight costs depend on the volume and shipping arrangement.

Request a Quote for a Skeleton Semi Trailer

If you are looking for a skeleton semi trailer for 20FT, 40FT, or 45FT container transportation, Qingdao Jinjun Vehicle Co., Ltd. can help you review the required configuration. Please share the container size, expected cargo weight, axle preference, suspension requirements, destination country, and quantity.

With these details, the trailer specification and shipping arrangement can be evaluated according to your transport needs. Contact Jinjun to discuss a customized skeleton container semi trailer solution for your logistics operation.
