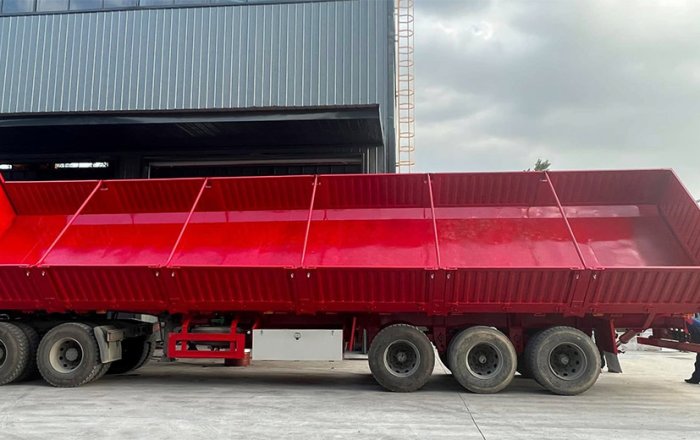

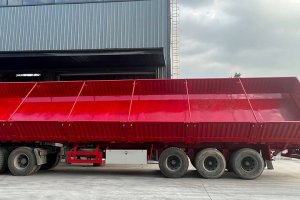

Side Dump Semi-trailer is ideal equipment for carrying sand crush stone rock and salt material.
Our 12 wheel side dump trailer are equipped with hydraulic cylinder, which is more reliable and more safety, all key parts of dump trailer are from famous brands at home and aboard. We can supply 2 axles, 3 axles, 4 axles dump semi-trailer, which loading capacity from 40 ton ton 120 ton for customer specific requirements. Because of Reliability, durability and the low maintenance of our 3 axle side dump semi trailer have been appreciated around the world.
Volume and Loading capacity of trailer can custom made to meet customer needs
Frame body Q345B high strength structure steel.
Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.
Equipped with cylinder, which is more reliable and more safety
Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.

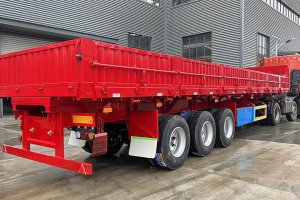

| 14m three-axle Side Dump Semi Trailer | |
| We accept customization of any LOGO/DESIGN/COLOR etc | |
| Payload | 60T |
| Size | 14000mm*2550mm*600mm(can be customized) |
| Material | Frame wings/webs:12/6/12 |
| Base plate:3mm flat plate | |
| Side plate:1.5mm corrugated board height:600mm/13 corrugated boards | |
| Hydraulic system | Cylinder |

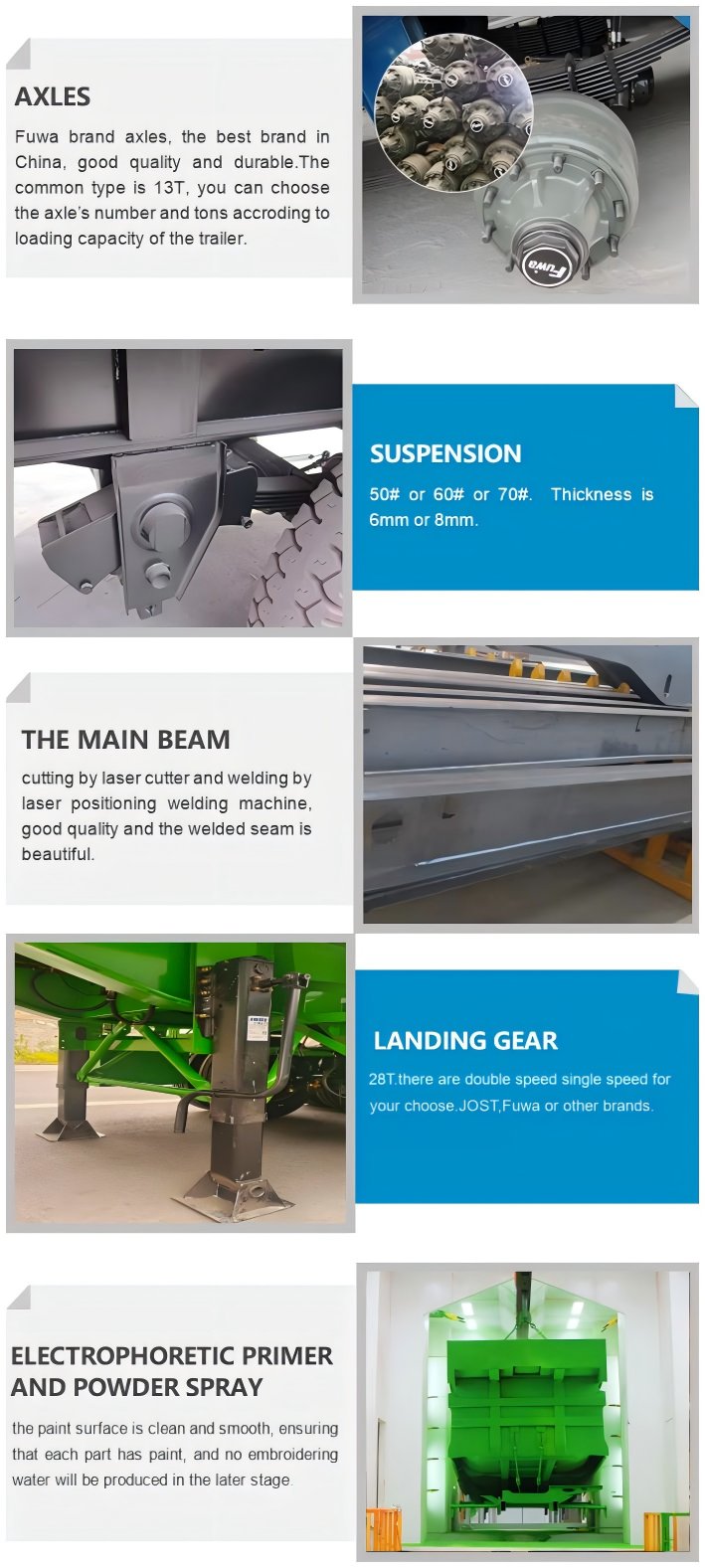

| Axle | 3 axle*16T,FUWA/BPW brand (Optional) |
| Suspension | Mechanical Suspension / Air Suspension with lifting (American or German) |
| Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) |
| Landing Gear | 28t Heavy Duty Landing Gear,JOST brand or others |
| King Pin | 2"(50mm)or3.5"(90mm) JOST brand or others |
| Tire | 12.00R22.5 (Brand optional) |
| Rim | 9.00-22.5 |
| Braking system | WABCO |
| ABS | WABCO brand or other brands or without ABS (Optional) |
| Painting | Any color will be available with powder coating process |
| Packaging and delivery | By sea transfer from Qingdao or Lianyungang or Tianjin Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume. |
| Remarks | We can design model according to customer's requirement |
