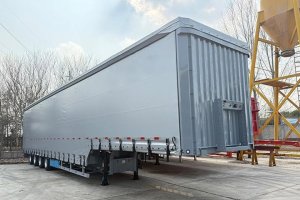

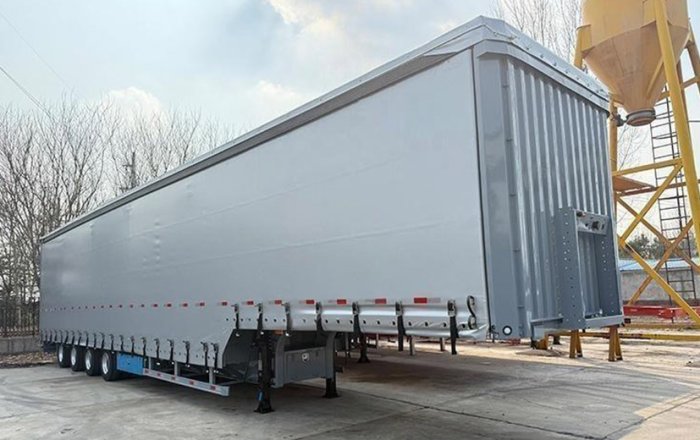

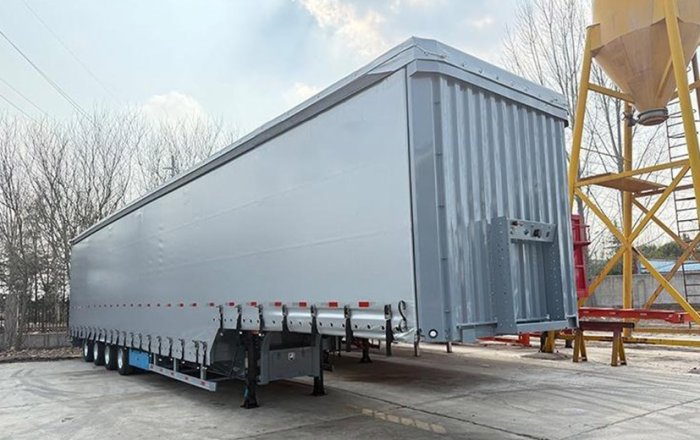

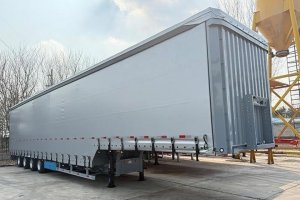

Curtain Side Semi Trailer

Curtain side semi trailer combines the advantages of a flatbed with the covering and containment benefits of an enclosed trailer. Consisting of durable yet flexible PVC-coated vinyl side curtains which can be retracted from either the front or rear of the trailer, and van-style swinging rear doors, a curtain side totally encloses the load for weatherproof protection and security.

Curtain siders are widely used for the hauling of the goods from expensive automobiles to raw lumber, to delicate manufacturing components.

We can provide all the models you need and support customization. Please leave your inquiry if you have any questions.

Inquire now Add to cart

Product Details

Product	Curtain side semi trailer
Dimension	13890×2550×4000mm

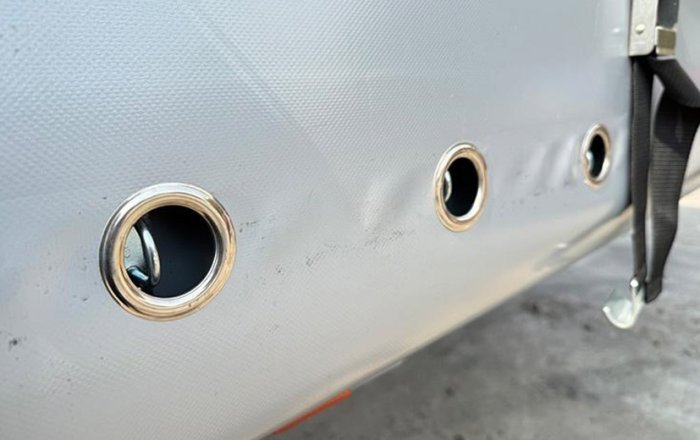

Upper structure Assembly	Curtain	Top density	900g±50g/㎡
		Side density	≥680g/㎡

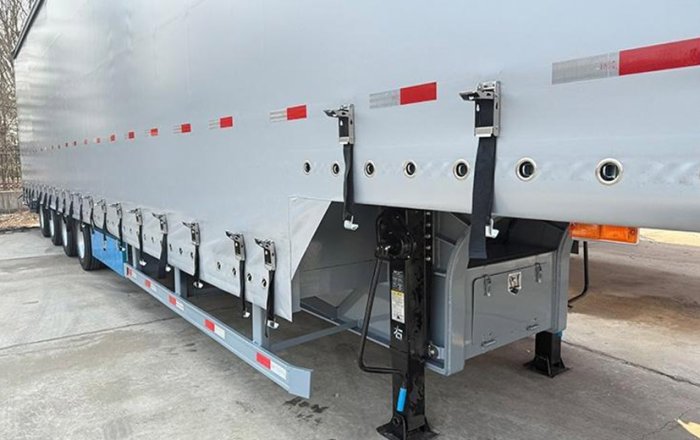

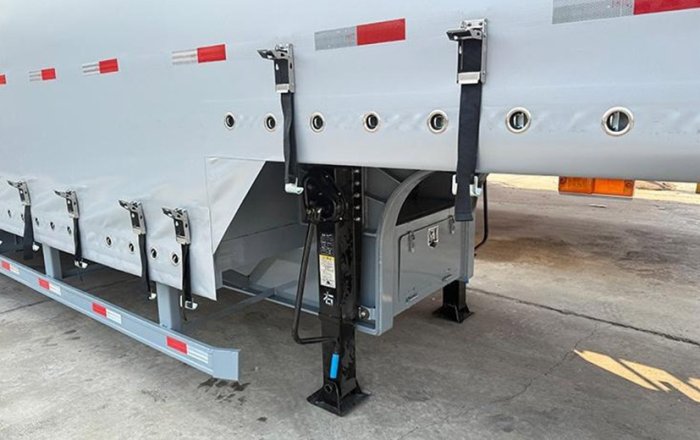

		The tension locking mechanism at the bottom
		is made of stainless steel
	floor board	Material	Plywood
		Thickness	30mm
	Frame	Column	There are 4 columns on each side
			(8 columns in the whole trailer)

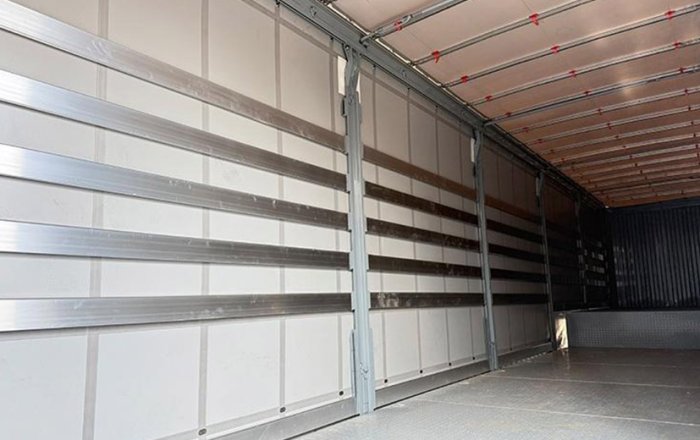

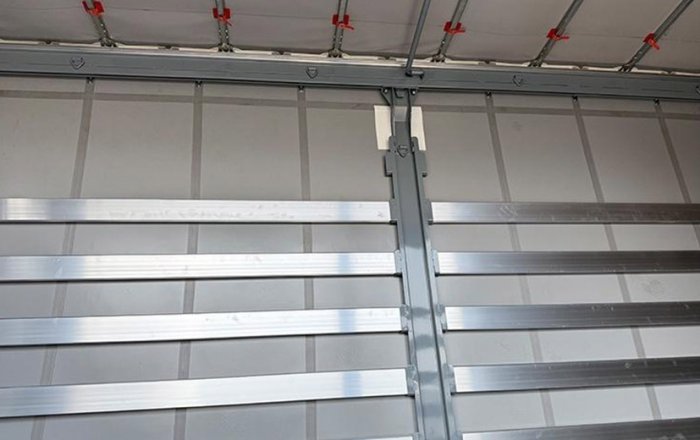

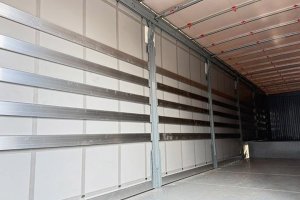

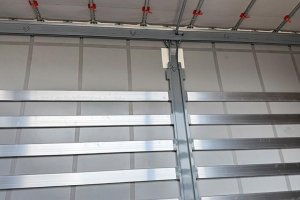

		Baffle	There are 4 removable aluminum Baffles
			between the columns (20 on each side)

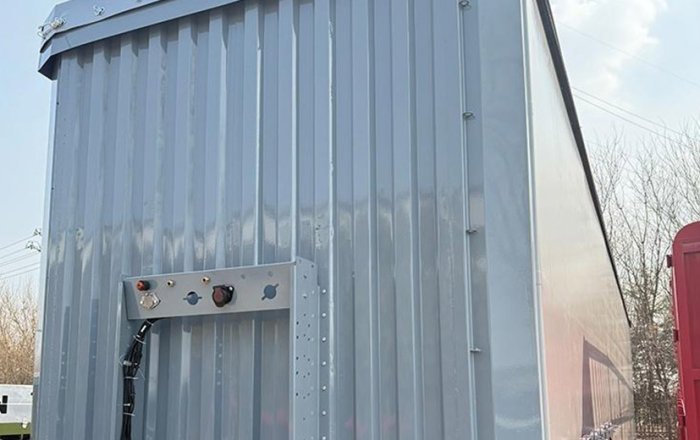

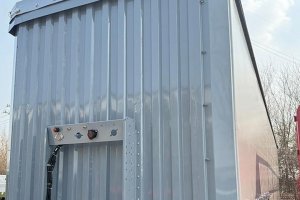

	Front bezel	Aluminum alloy structural section
	Back door	Two aluminum doors with 4 hidden mechanisms
		(2 mechanisms per door), as well as locking devices
		installed outside under the floor to secure the doors
		in the open position.
	Side loading height	2600mm

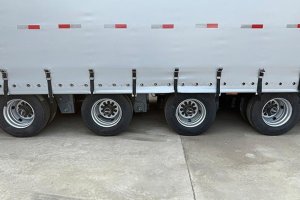

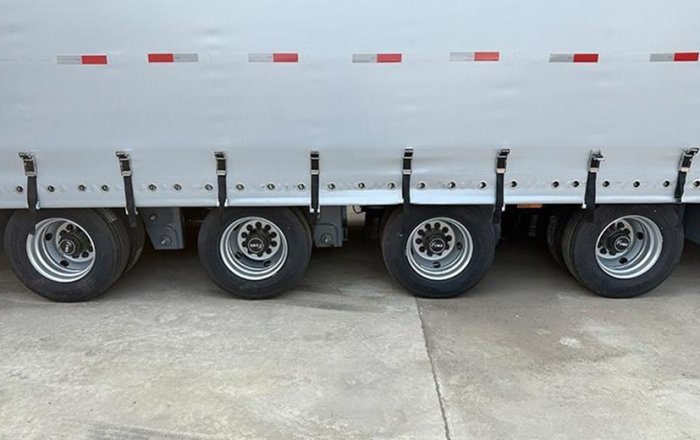

Running mechanism	Axle	Brand	SAF
		Type	3/4 axles (first axle lift)
		Number	3/4
		tonnage	10T
	Rim	Type	11.75*22.5
	Tyre	Brand	Triangle brand
		Type	385/65R22.5
		Number	7pcs (Including 1 spare tire)

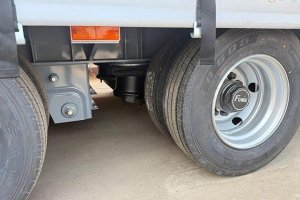

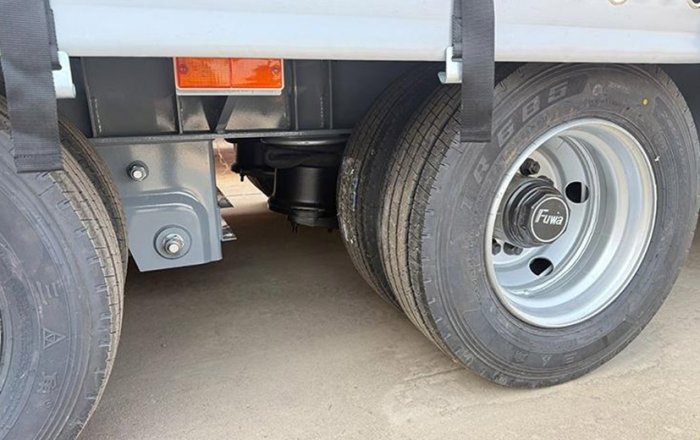

	Suspension	Air suspension, the whole trailer can be lifted
Accessories	King pin	Brand	JOST brand
		Diameter	2.0 inch

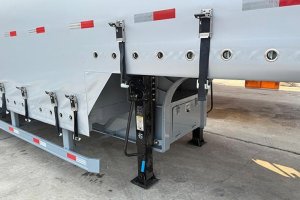

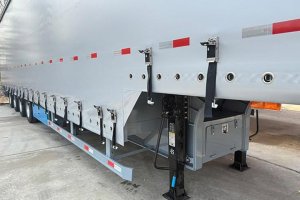

	Landing gear	SAF brand
	Spare tire carrier	1 set
Brake system	Brake chamber	4 double brake chamber and 2 single chamber
	EBS	WABCO 4S/2M
Electrical systems and lighting	lamps	LED
	Voltage	24V
	Receptacle	7 ways (7 wire harness) and quick change type
		and 15 ways (15 wire harness)
